CMB02070X1002GB200 - Vishay

Description: 10 kOhms ±2% 1W Chip Resistor MELF, 0207 Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding Carbon Film

Download CMB02070X1002GB200 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CMB02070X1002GB200 - Vishay - PCB symbol
click to zoom

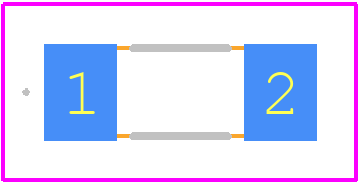

PCB Footprints
CMB02070X1002GB200 - Vishay PCB footprint - Other - Other - 0207_2023
click to zoom
3D Models
CMB02070X1002GB200 - Vishay - 3D model - Other - 0207_2023
click to zoom

CMB02070X1002GB200 Details

  • Manufacturer Part Number:

    CMB02070X1002GB200

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MELF

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.10.00.42

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Additional Feature:

    ANTI-SULFUR, RATED AC VOLTAGE: 500V

  • Construction:

    Cylindrical

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Diameter:

    2.2 mm

  • Package Length:

    5.8 mm

  • Package Style:

    SMT

  • Packing Method:

    TR, BLISTER, 7 INCH

  • Rated Power Dissipation (P):

    0.4 W

  • Rated Temperature:

    70 °C

  • Reference Standard:

    AEC-Q200; VDE

  • Resistance:

    10000 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    2309

  • Surface Mount:

    YES

  • Technology:

    CARBON FILM

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    2%

  • Working Voltage:

    500 V

CMB02070X1002GB200 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the CMB02070X1002GB200 can be found in the Vishay Intertechnologies' application note 'Land Pattern Recommendations for Surface Mount Components'.
  • Handle the component by the body, avoiding touching the leads or the ceramic capacitor body to prevent damage from electrostatic discharge (ESD).
  • The maximum voltage derating for the CMB02070X1002GB200 is 80% of the rated voltage, as specified in the datasheet.
  • Yes, the CMB02070X1002GB200 is suitable for high-frequency applications up to 1 GHz, but the impedance and ESR should be considered in the design.
  • Store the component in a dry, cool place, and handle it in a moisture-controlled environment to prevent moisture absorption. Bake the component at 125°C for 24 hours before assembly if it has been exposed to high humidity.
