Part Image

CMB02070X4700GB200 - Vishay

Description: 470Ω 0207 Thin Film Carbon Film Surface Mount Resistor ±2% 0.4W CMB02070X4700GB200

Download CMB02070X4700GB200 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CMB02070X4700GB200 - Vishay - PCB symbol
click to zoom

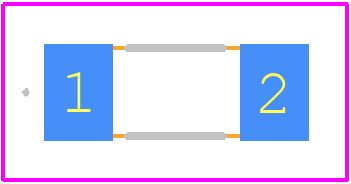

PCB Footprints
CMB02070X4700GB200 - Vishay PCB footprint - Other - Other - CMB 0207
click to zoom
3D Models
CMB02070X4700GB200 - Vishay - 3D model - Other - CMB 0207
click to zoom

CMB02070X4700GB200 Details

  • Manufacturer Part Number:

    CMB02070X4700GB200

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MELF

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.10.00.42

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Additional Feature:

    ANTI-SULFUR, RATED AC VOLTAGE: 500V

  • Construction:

    Cylindrical

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Diameter:

    2.2 mm

  • Package Length:

    5.8 mm

  • Package Style:

    SMT

  • Packing Method:

    TR, BLISTER, 7 INCH

  • Rated Power Dissipation (P):

    0.4 W

  • Rated Temperature:

    70 °C

  • Reference Standard:

    AEC-Q200; VDE

  • Resistance:

    470 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    2309

  • Surface Mount:

    YES

  • Technology:

    CARBON FILM

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    2%

  • Working Voltage:

    500 V

CMB02070X4700GB200 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the CMB02070X4700GB200 can be found in the Vishay Intertechnologies' Capacitor Land Pattern Recommendations document, which provides guidelines for pad layout and spacing to ensure reliable soldering and assembly.
  • The Equivalent Series Resistance (ESR) of the CMB02070X4700GB200 can impact its performance in high-frequency circuits by introducing additional losses and reducing the overall efficiency of the circuit. It's essential to consider the ESR when designing high-frequency circuits to ensure optimal performance.
  • The CMB02070X4700GB200 has an operating temperature range of -55°C to +125°C, making it suitable for a wide range of applications, including automotive, industrial, and consumer electronics.
  • Yes, the CMB02070X4700GB200 is compatible with lead-free soldering processes, making it suitable for use in RoHS-compliant designs.
  • To prevent damage and ensure reliability, it's recommended to store the CMB02070X4700GB200 in a dry, cool place, away from direct sunlight and moisture. Handling should be done with care to avoid mechanical stress and electrostatic discharge.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CMB02070X4700GB200 Overview

Use the download button to access the CMB02070X4700GB200 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMB02, or try a keyword search, such as Carbon Film Resistors
