- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for CMD170P4
- Part Number CMD170P4
- Manufacturer Qorvo
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 24-Lead QFN_2023
- Released Date Sep 25, 2023
- Last Modified Date Feb 19, 2025 12:06 PM UTC
- Pinout / Pin List Click Here (Member Only)
CMD170P4 Details
-
Manufacturer Part Number:
CMD170P4
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Factory Lead Time:
22 Weeks
-
Manufacturer:
Qorvo
-
RF/Microwave Device Type:
WIDE BAND MEDIUM POWER
CMD170P4 Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize the distance to the antenna. A 50-ohm microstrip line should be used to connect the device to the antenna.
-
The optimal bias point for the CMD170P4 is typically around 3.5V to 4.5V. The device should be biased in a way that minimizes current consumption while maintaining the required output power. A DC-DC converter can be used to regulate the voltage and reduce power consumption.
-
The input matching network should be designed to match the 50-ohm input impedance of the device to the source impedance. The output matching network should be designed to match the 50-ohm output impedance of the device to the load impedance. A pi-network or a T-network can be used for input and output matching.
-
The device should be operated within its recommended operating conditions, including voltage, current, and temperature. The device should not be operated at or near its maximum ratings for extended periods. A thermal management system, such as a heat sink, should be used to keep the device temperature within its recommended range.
-
The CMD170P4 is a sensitive device and requires ESD protection to prevent damage. A diode array or a transient voltage suppressor (TVS) can be used to protect the device from ESD events. The ESD protection device should be placed as close as possible to the device.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
CMD170P4 Overview

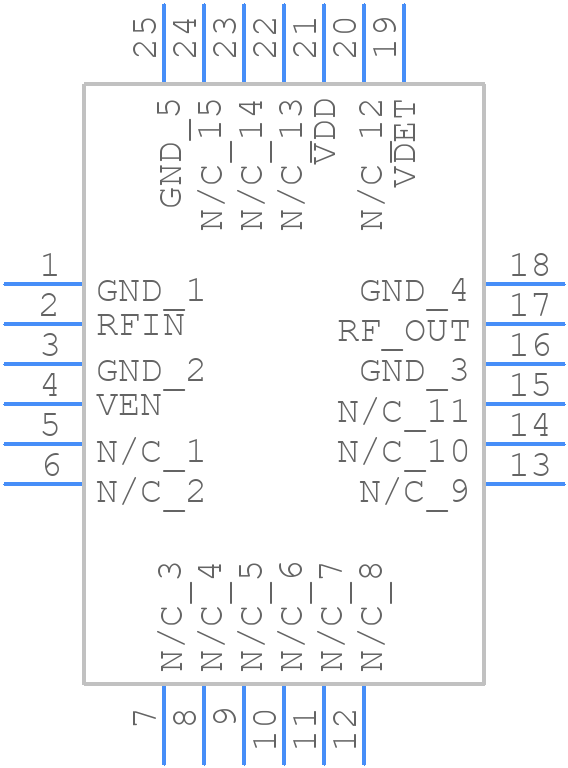

Use the download button to access the CMD170P4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMD17,
or try a keyword search, such as RF/Microwave Amplifiers
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
