CMD176P4 - Qorvo

Description: • Low Phase Error • Low Insertion Loss • 360o Phase Shift, LSB = 22.5o • Singe Bit Positive Logic • Pb-Free RoHs Compliant 4x4 mm QFN Package

Download CMD176P4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

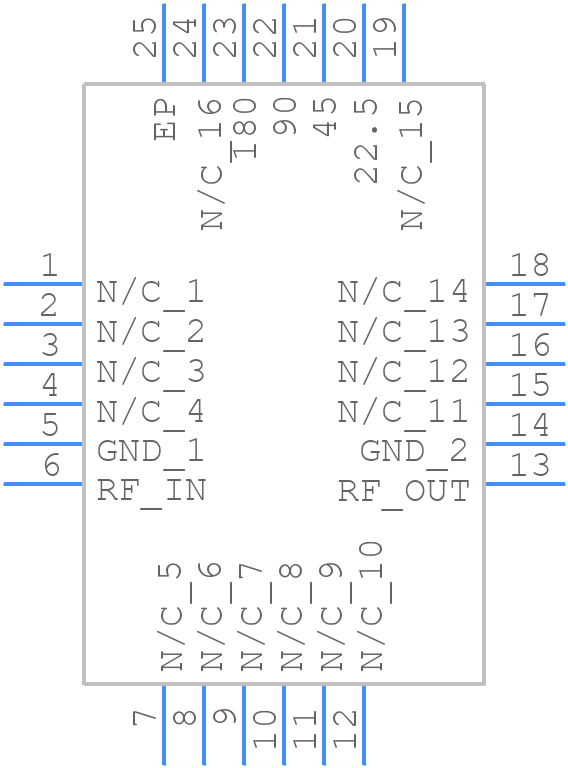

CMD176P4 - Qorvo - PCB symbol
click to zoom
PCB Footprints
CMD176P4 - Qorvo PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CMD169P4
click to zoom
3D Models
CMD176P4 - Qorvo - 3D model - Quad Flat No-Lead - CMD169P4
click to zoom

CMD176P4 Details

  • Manufacturer Part Number:

    CMD176P4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Qorvo

  • YTEOL:

    0

  • RF/Microwave Device Type:

    DIGITALLY CONTROLLED PHASE SHIFTER

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CMD176P4 Overview

Use the download button to access the CMD176P4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMD17, or try a keyword search, such as RF/Microwave Phase Shifters

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
