- Part Number CMD180C3
- Manufacturer Qorvo
- Pin Count 13
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - 12-Lead QFN 3x3
- Released Date Oct 14, 2024
- Last Modified Date Feb 24, 2025 4:27 PM UTC
- Pinout / Pin List Click Here (Member Only)
CMD180C3 Details
-
Manufacturer Part Number:
CMD180C3
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Factory Lead Time:
22 Weeks
-
Manufacturer:
Qorvo
-
YTEOL:
7
-
JESD-609 Code:
e4
-
RF/Microwave Device Type:
DOUBLE BALANCED
-
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
CMD180C3 Frequently Asked Questions (FAQs)
-
Qorvo provides a recommended PCB layout and thermal management guide in their application note AN-1234, which includes guidelines for thermal vias, heat sinks, and PCB material selection to ensure optimal performance and reliability.
-
The biasing circuit should be designed to provide a stable voltage supply to the device, with a recommended voltage range of 3.3V to 5V. A decoupling capacitor of 100nF to 1uF should be placed close to the device, and a series resistor of 10Ω to 100Ω can be used to limit the current. Additionally, a voltage regulator or a low-dropout regulator (LDO) can be used to regulate the voltage supply.
-
The CMD180C3 is rated for operation from -40°C to +85°C, but it's recommended to derate the power dissipation above 70°C to ensure reliability and prevent thermal runaway.
-
Common issues with the CMD180C3 can be troubleshooted by checking the PCB layout for proper grounding and decoupling, ensuring the biasing circuit is stable and within the recommended range, and verifying that the input and output impedances are matched. Additionally, Qorvo provides a troubleshooting guide in their application note AN-1235, which includes steps to identify and resolve common issues.
-
The CMD180C3 is a sensitive device and requires proper ESD protection during handling and assembly. Qorvo recommends using ESD protection devices such as diodes or TVS devices on the input and output pins, and following proper ESD handling procedures during assembly and testing.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
CMD180C3 Overview

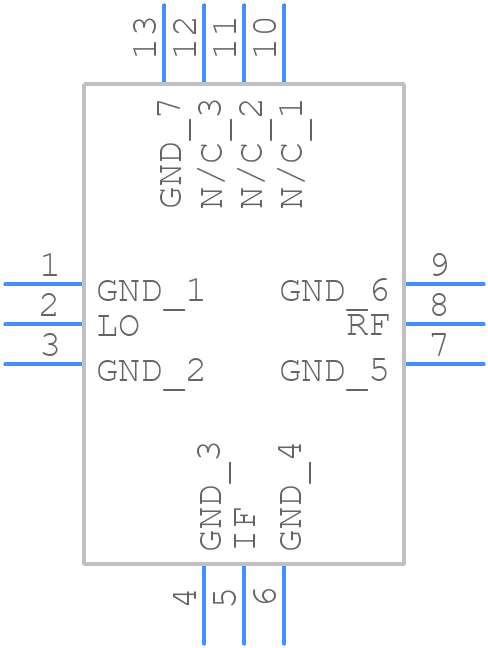

Use the download button to access the CMD180C3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMD18,
or try a keyword search, such as RF/Microwave Mixers
