- Part Number CMD181K3
- Manufacturer Qorvo
- Pin Count 13
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - QPC3223SR.
- Released Date Dec 18, 2024
- Last Modified Date Feb 19, 2025 12:06 PM UTC
- Pinout / Pin List Click Here (Member Only)
CMD181K3 Details
-
Manufacturer Part Number:
CMD181K3
-
Rohs Code:
Yes
-
Part Life Cycle Code:
End Of Life
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Factory Lead Time:
22 Weeks
-
Manufacturer:
Qorvo
-
YTEOL:
0
-
RF/Microwave Device Type:
IMAGE REJECTION
CMD181K3 Frequently Asked Questions (FAQs)
-
Qorvo provides a recommended PCB layout and thermal management guide in their application note AN-1234. It's essential to follow these guidelines to ensure optimal performance, thermal stability, and to prevent overheating.
-
The biasing circuit should be designed to provide a stable voltage supply and minimize noise. A recommended biasing circuit is shown in the datasheet, but it's essential to simulate and optimize the circuit for your specific application using tools like SPICE or ADS.
-
While the datasheet specifies an operating temperature range of -40°C to 85°C, it's essential to note that the device's performance and reliability may degrade at higher temperatures. It's recommended to operate the device within a temperature range of -20°C to 70°C for optimal performance.
-
Qorvo provides a troubleshooting guide in their application note AN-1235, which covers common issues and their solutions. Additionally, it's essential to follow proper PCB design and layout practices, ensure proper biasing and termination, and use simulation tools to identify and fix potential issues.
-
The CMD181K3 is a sensitive device and requires proper ESD protection and handling precautions. It's essential to follow Qorvo's recommended ESD handling procedures, use ESD-safe materials and tools, and ensure that the device is properly grounded during handling and assembly.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
CMD181K3 Overview

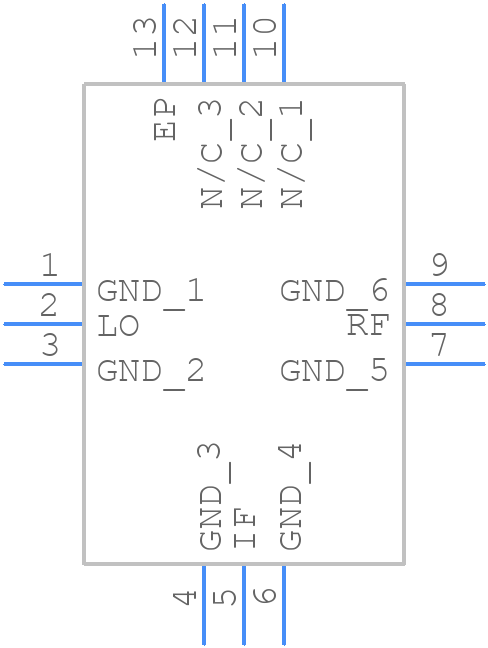

Use the download button to access the CMD181K3 schematic symbol, PCB footprint, and 3D model.
