- Part Number CMD183C4
- Manufacturer Qorvo
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QFN-24
- Released Date Dec 18, 2024
- Last Modified Date Feb 19, 2025 12:06 PM UTC
- Pinout / Pin List Click Here (Member Only)
CMD183C4 Details
-
Manufacturer Part Number:
CMD183C4
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Factory Lead Time:
22 Weeks
-
Manufacturer:
Qorvo
-
YTEOL:
7
-
RF/Microwave Device Type:
IMAGE REJECTION
CMD183C4 Frequently Asked Questions (FAQs)
-
Qorvo provides a recommended PCB layout in their application note AN-1234, which includes guidelines for component placement, trace routing, and grounding to minimize noise and ensure optimal performance.
-
Qorvo recommends using a combination of tools such as spectrum analyzers, oscilloscopes, and signal generators to troubleshoot issues with the CMD183C4. Additionally, checking the device's operating conditions, such as voltage and temperature, can help identify potential causes of issues.
-
While the datasheet specifies an operating temperature range of -40°C to 85°C, Qorvo recommends derating the device's output power by 1 dB for every 10°C above 70°C to ensure reliable operation.
-
Yes, the CMD183C4 can be used in a push-pull configuration to increase output power. However, Qorvo recommends using a balun or transformer to combine the outputs of the two devices, and ensuring that the devices are properly matched and biased to avoid uneven power distribution.
-
Qorvo recommends using a voltage-controlled biasing scheme, where the gate voltage is adjusted to optimize the device's output power and efficiency. A typical biasing scheme involves setting the gate voltage to around 1-2V, with a quiescent current of around 10-20mA.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
CMD183C4 Overview

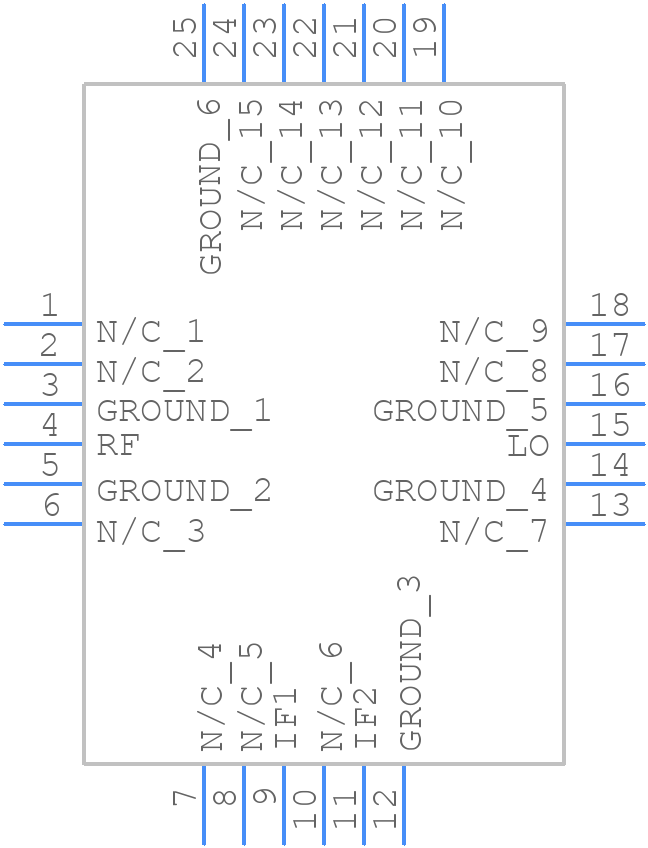

Use the download button to access the CMD183C4 schematic symbol, PCB footprint, and 3D model.
