Qorvo provides a recommended PCB layout and thermal management guidelines in their application note AN-1234. It's essential to follow these guidelines to ensure optimal performance, thermal stability, and to prevent overheating.
The biasing circuit should be designed to provide a stable voltage supply and minimize noise. Qorvo recommends using a low-noise voltage regulator and decoupling capacitors to ensure a stable bias voltage. Additionally, the bias circuit should be designed to minimize thermal gradients and ensure good thermal conductivity.
While the datasheet specifies an operating temperature range of -40°C to 85°C, Qorvo recommends derating the device's power output above 70°C to ensure reliable operation and prevent overheating. It's essential to consider the thermal management and heat dissipation in the system design.
Qorvo provides a troubleshooting guide in their application note AN-1235, which covers common issues and their solutions. Additionally, it's essential to ensure proper PCB layout, decoupling, and thermal management to prevent oscillations and instability.
The CMD203C4 is a sensitive device and requires proper ESD protection during handling and assembly. Qorvo recommends following standard ESD handling procedures, such as using ESD-safe workstations, wrist straps, and packaging materials. Additionally, the device should be stored in a dry, ESD-safe environment.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CMD203C4 Overview

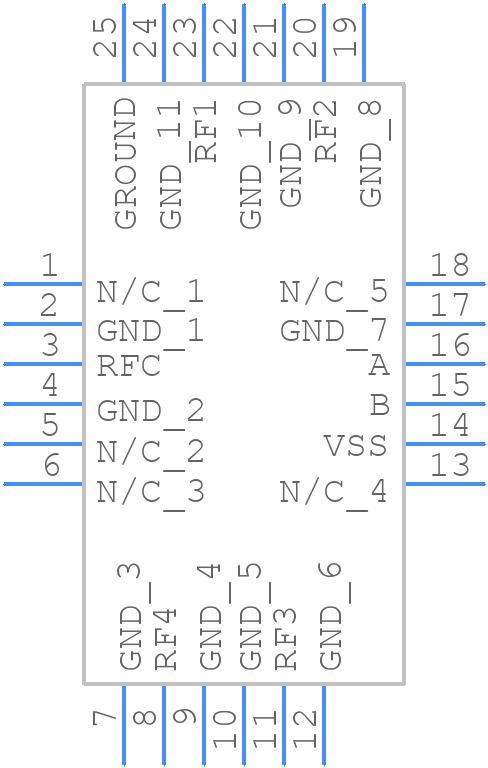

Use the download button to access the CMD203C4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMD20,
or try a keyword search, such as RF/Microwave Switches
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
