A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using a thermal pad and connecting it to a heat sink or a metal plate.
Use a low-noise, high-PSRR voltage regulator to power the device. Ensure the bias voltage is set to the recommended 3.3V ± 0.1V, and use a 1kΩ to 10kΩ resistor in series with the bias pin to prevent oscillations.
Use a conjugate match at the input and output ports to achieve optimal performance. A series inductor and shunt capacitor at the input, and a series capacitor and shunt inductor at the output, can be used to achieve a good match.
Use ESD protection diodes and TVS diodes at the input and output ports to protect against ESD and overvoltage. Ensure the device is handled and stored in an ESD-safe environment.
The recommended operating temperature range is -40°C to 85°C. However, the device can operate up to 105°C with reduced performance and reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CMD240P4 Overview

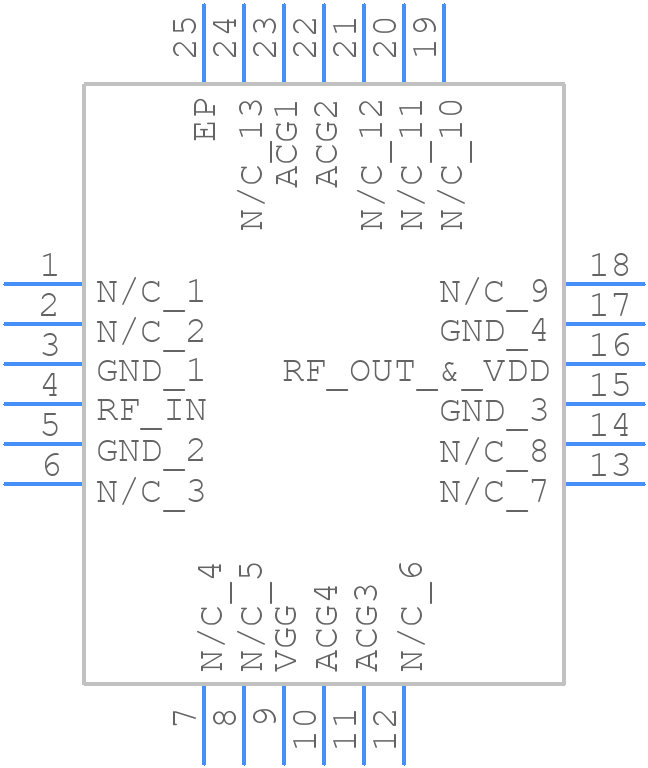

Use the download button to access the CMD240P4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMD24,
or try a keyword search, such as RF/Microwave Amplifiers
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
