- Part Number CMD253C3
- Manufacturer Qorvo
- Pin Count 13
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - 12-Lead QFN 3x3
- Released Date Feb 24, 2025
- Last Modified Date Feb 24, 2025 5:39 PM UTC
- Pinout / Pin List Click Here (Member Only)
CMD253C3 Details
-
Manufacturer Part Number:
CMD253C3
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Factory Lead Time:
22 Weeks
-
Manufacturer:
Qorvo
-
YTEOL:
7
-
JESD-609 Code:
e4
-
RF/Microwave Device Type:
DOUBLE BALANCED
-
Terminal Finish:
NICKEL PALLADIUM GOLD
CMD253C3 Frequently Asked Questions (FAQs)
-
Qorvo provides a recommended PCB layout and thermal management guide in their application note AN-1234, which includes guidelines for thermal vias, heat sinks, and PCB material selection to ensure optimal performance and reliability.
-
The biasing circuit should be designed to provide a stable voltage supply to the device, with a recommended voltage range of 3.3V to 5V. A decoupling capacitor of 100nF to 1uF should be placed close to the device to filter out noise and ensure stable operation.
-
The CMD253C3 is rated for operation from -40°C to 85°C, but it's recommended to derate the device's performance at higher temperatures to ensure reliability and prevent thermal runaway.
-
Qorvo provides a troubleshooting guide in their application note AN-1235, which includes steps to identify and resolve common issues such as oscillations, instability, and noise sensitivity. Additionally, Qorvo's technical support team can provide further assistance and guidance.
-
The CMD253C3 has an ESD rating of 1kV HBM and 250V MM, and it's recommended to handle the device with ESD-protective equipment and follow proper handling procedures to prevent damage during assembly and testing.
Trust Checks
Expert Contribution
System Verified
Community Approved
CMD253C3 Overview

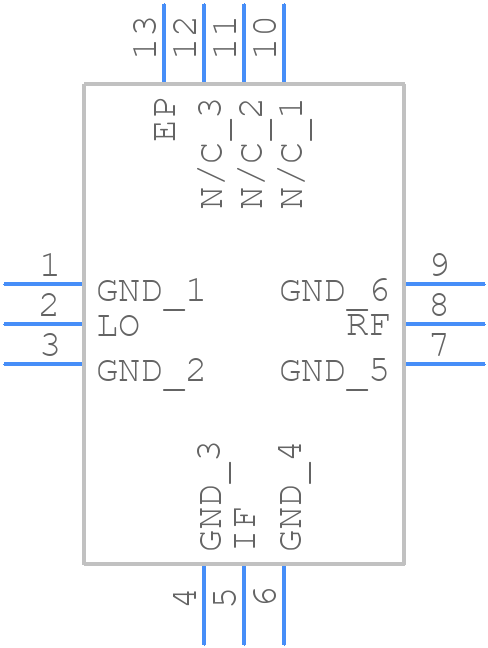

Use the download button to access the CMD253C3 schematic symbol, PCB footprint, and 3D model.
