A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for heat dissipation. Use a thermal pad or heat sink to maintain a junction temperature below 150°C.
Use a combination of simulation tools and empirical methods to optimize the input and output matching networks. Consider using a load-pull analysis to determine the optimal impedance for maximum gain and efficiency.
Operate the device within the recommended temperature range of -40°C to 85°C. Ensure a stable power supply with minimal ripple and noise. Avoid exceeding the maximum ratings for voltage, current, and power dissipation.
Use a combination of simulation tools, oscilloscopes, and spectrum analyzers to identify the root cause of the issue. Check for proper PCB layout, component selection, and soldering quality. Consult the datasheet and application notes for troubleshooting guidelines.
Handle the device with ESD-protective equipment and follow proper handling procedures to prevent damage. Ensure a static-free environment and use ESD-protective packaging during storage and transportation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CMD274P4 Overview

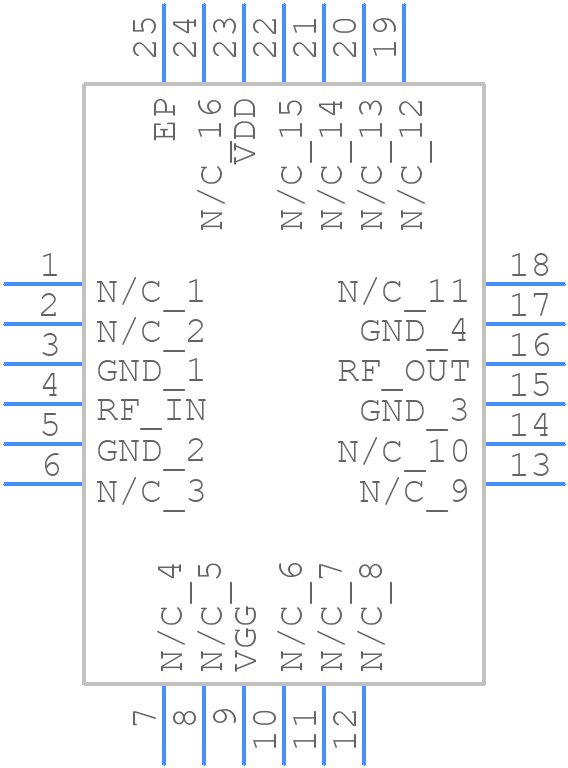

Use the download button to access the CMD274P4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMD27,
or try a keyword search, such as RF/Microwave Amplifiers
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
