A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using a thermal pad and connecting it to a heat sink or a metal plate.
Use a voltage-controlled current source for biasing, and adjust the voltage to achieve the desired current. Ensure the bias voltage is stable and noise-free.
Use a conjugate match at the input and output ports to achieve maximum power transfer. A 50-ohm system is recommended, with a series inductor and shunt capacitor at the input, and a series capacitor and shunt inductor at the output.
Use a low-noise biasing circuit, and ensure the amplifier is operated within its recommended operating conditions. Minimize the number of components and use high-quality, low-noise components.
The recommended operating temperature range is -40°C to 85°C. Ensure proper thermal management to prevent overheating, which can affect reliability and performance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CMD284P4 Overview

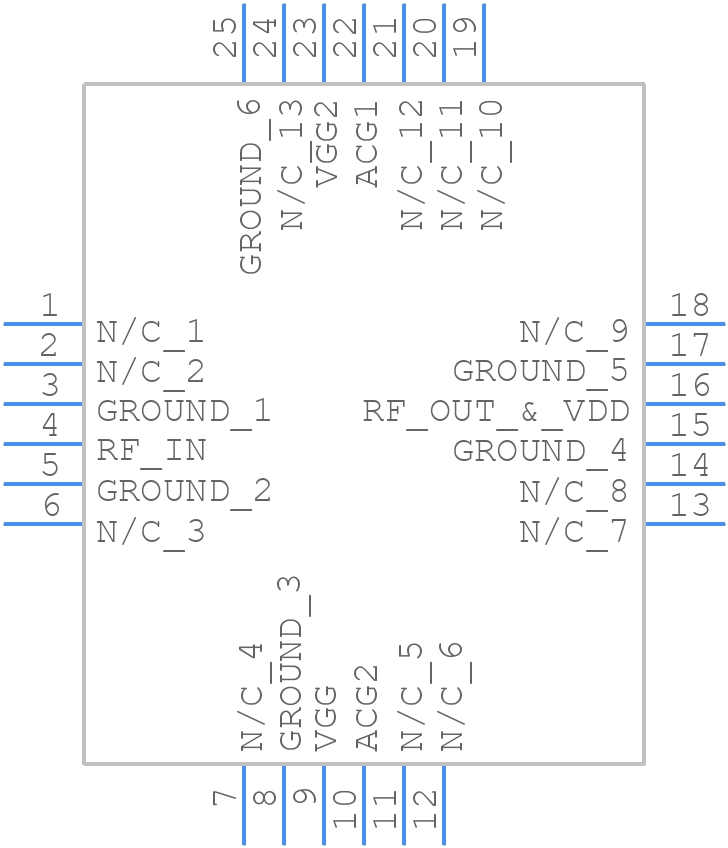

Use the download button to access the CMD284P4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMD28,
or try a keyword search, such as RF/Microwave Amplifiers
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
