CMD298C4 - Qorvo

Description: 17-25 GHz Low Noise Amplifier

Download CMD298C4 Model

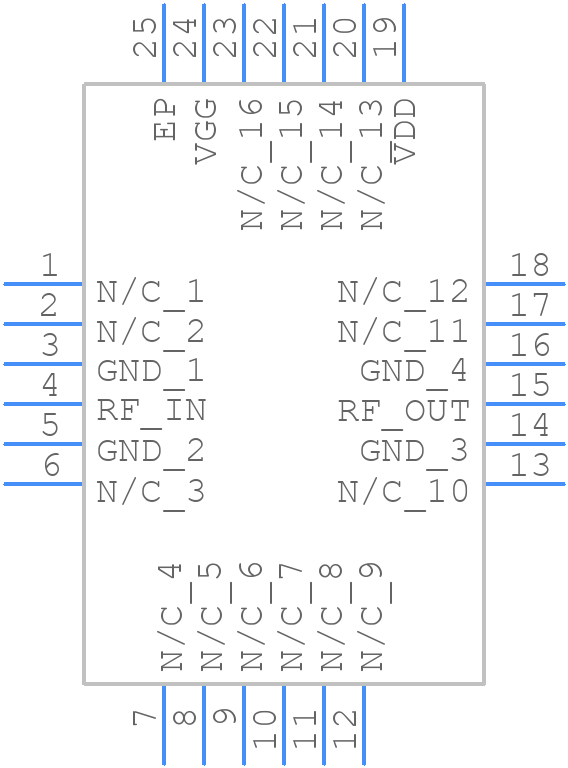

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CMD298C4 - Qorvo PCB footprint - Other - Other - Ceramic QFN 4x4 mm x 24 leads
click to zoom
3D Models
CMD298C4 - Qorvo  - 3D model - Other - Ceramic QFN 4x4 mm x 24 leads
click to zoom

CMD298C4 Details

  • Manufacturer Part Number:

    CMD298C4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Qorvo

  • YTEOL:

    8

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    22 dB

  • Input Power-Max (CW):

    20 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    25000 MHz

  • Operating Frequency-Min:

    17000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    LCC24,.15SQ,20

  • Power Supplies:

    3 V

  • RF/Microwave Device Type:

    LOW NOISE AMPLIFIER

  • Supply Current-Max:

    35 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • VSWR-Max:

    1.67

CMD298C4 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize the distance to the antenna. A 50-ohm microstrip line should be used to connect the device to the antenna.
  • The optimal bias point for maximum power efficiency is typically around 3.5V to 4.5V. The bias current should be set to around 200-300 mA. The device should be operated in a Class-AB mode to achieve the best trade-off between power efficiency and linearity.
  • A simple L-match or pi-match network can be used to match the device to a 50-ohm load. The values of the matching components will depend on the specific application and frequency of operation. A network analyzer can be used to optimize the matching network for maximum power transfer.
  • The device should be mounted on a heat sink or a thermal pad to dissipate heat. The PCB should be designed to provide good thermal conductivity. The device should be operated at a temperature range of -40°C to 85°C for optimal performance and reliability.
  • The input impedance should be 50 ohms, and the output impedance should be 50 ohms or lower to ensure maximum power transfer. The device can be operated with a mismatched load, but this may affect the power efficiency and linearity.
