- Part Number CMD307P3
- Manufacturer Qorvo
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - CMD271P3--
- Released Date Dec 19, 2022
- Last Modified Date Feb 19, 2025 12:06 PM UTC
- Pinout / Pin List Click Here (Member Only)
CMD307P3 Details
-
Manufacturer Part Number:
CMD307P3
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
QFN-16
-
ECCN Code:
EAR99
-
Factory Lead Time:
22 Weeks
-
Manufacturer:
Qorvo
-
YTEOL:
7.17
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Gain:
13 dB
CMD307P3 Frequently Asked Questions (FAQs)
-
Qorvo provides a recommended PCB layout and thermal management guide in their application note AN-1234. It's essential to follow these guidelines to ensure optimal performance, thermal stability, and to prevent overheating.
-
The biasing circuit should be designed to provide a stable voltage supply and minimize noise. Qorvo recommends using a low-dropout regulator (LDO) and a decoupling capacitor network to ensure a clean and stable voltage supply. Refer to the application note AN-1235 for more details.
-
While the datasheet specifies an operating temperature range of -40°C to 85°C, Qorvo recommends derating the device's power dissipation above 70°C to ensure reliable operation and prevent thermal runaway.
-
Qorvo provides a troubleshooting guide in their application note AN-1236, which covers common issues and their solutions. Additionally, it's essential to verify the PCB layout, biasing circuit, and thermal management to ensure they meet the recommended guidelines.
-
Yes, the CMD307P3 is a sensitive device and requires proper ESD protection during handling, assembly, and testing. Qorvo recommends following the ESD protection guidelines outlined in their application note AN-1237 to prevent damage to the device.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
CMD307P3 Overview

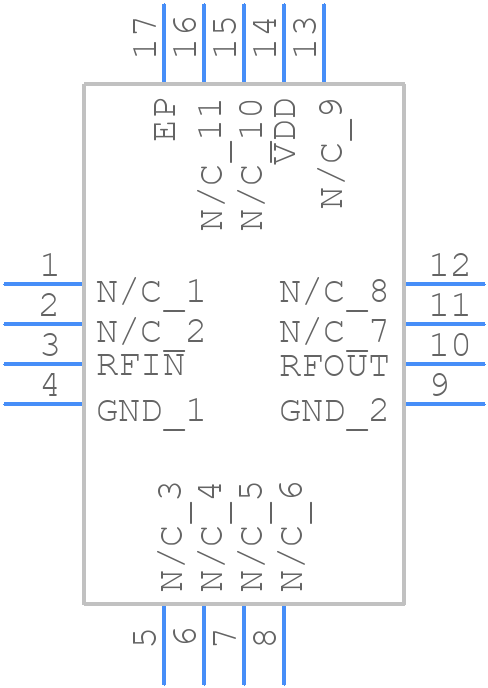

Use the download button to access the CMD307P3 schematic symbol, PCB footprint, and 3D model.
