Part Image

CMD308P4 - Qorvo

Description: 2-6 GHz Low Noise Amplifier

Download CMD308P4 Model

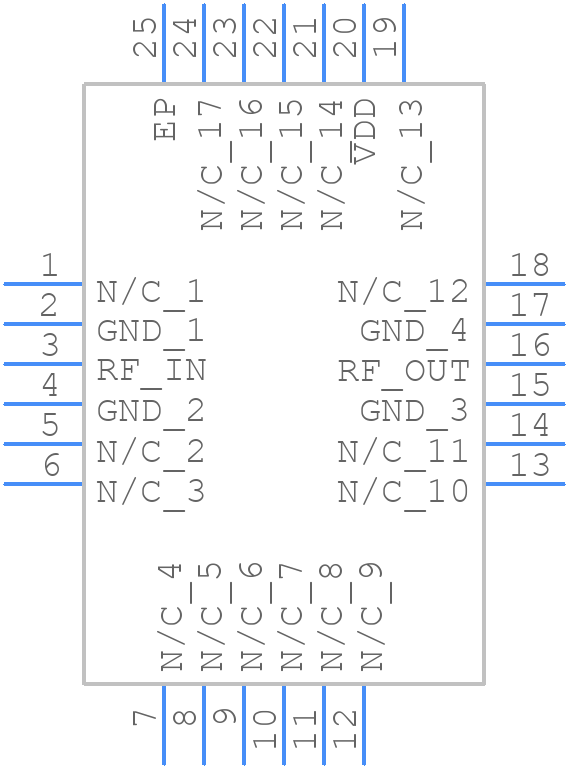

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CMD308P4 - Qorvo PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-Lead QFN_2023
click to zoom
3D Models
CMD308P4 - Qorvo  - 3D model - Quad Flat No-Lead - 24-Lead QFN_2023
click to zoom

CMD308P4 Details

  • Manufacturer Part Number:

    CMD308P4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Qorvo

  • YTEOL:

    7

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    25 dB

  • Input Power-Max (CW):

    20 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    2000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Power Supplies:

    4 V

  • RF/Microwave Device Type:

    LOW NOISE AMPLIFIER

  • Supply Current-Max:

    60 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    MATTE TIN

  • VSWR-Max:

    1.58

CMD308P4 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize the distance to the antenna. A 50-ohm microstrip line should be used to connect the device to the antenna.
  • The optimal bias point for maximum power efficiency is typically around 3.5V to 4.5V. The bias current should be set to around 200-300 mA for optimal performance. The device should be biased in a way that minimizes current consumption while maintaining the required output power.
  • A pi-network or a T-network can be used for input and output matching. The input matching network should be designed to match the 50-ohm input impedance of the device, while the output matching network should be designed to match the impedance of the antenna.
  • The device should be operated within its recommended operating conditions, including voltage, current, and temperature. The device should not be operated at or near its maximum ratings for extended periods of time. The device should be protected from overvoltage, overcurrent, and overheating.
  • A heat sink or thermal pad should be used to dissipate heat from the device. The device should be mounted on a PCB with a solid ground plane to help dissipate heat. The device should be operated in a well-ventilated area to prevent overheating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CMD308P4 Overview

Use the download button to access the CMD308P4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMD30, or try a keyword search, such as RF/Microwave Amplifiers

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
