Qorvo provides a recommended PCB layout guide for the CMD311P34, which includes guidelines for component placement, trace routing, and grounding. It's essential to follow this guide to ensure optimal performance, low noise, and minimal electromagnetic interference (EMI).
The biasing network for the CMD311P34 depends on the specific application and operating frequency. Qorvo provides a biasing network design guide that includes examples and calculations to help engineers choose the correct components and values for their specific use case.
The CMD311P34 is rated for operation up to 105°C, but it's essential to consider the derating curves provided in the datasheet to ensure reliable operation over the desired temperature range.
Qorvo provides a troubleshooting guide that covers common issues and their potential causes, along with recommended solutions and debugging techniques. Additionally, engineers can consult with Qorvo's technical support team for further assistance.
Yes, the CMD311P34 is a sensitive device that requires proper ESD handling and storage to prevent damage. Qorvo recommends following standard ESD handling procedures, such as using anti-static wrist straps, mats, and bags, and storing the devices in a dry, cool environment.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CMD311P34 Overview

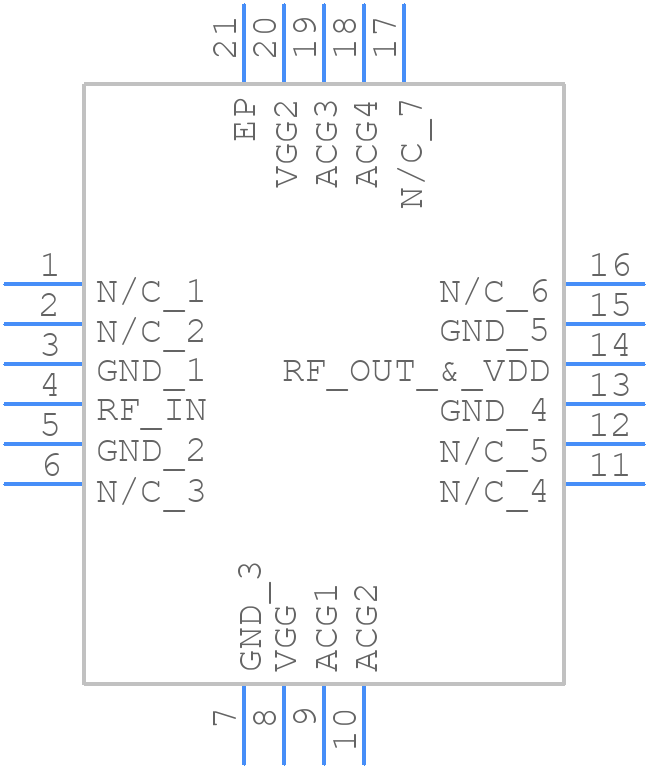

Use the download button to access the CMD311P34 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMD31,
or try a keyword search, such as RF/Microwave Amplifiers
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
