- Part Number CMD320C3
- Manufacturer Qorvo
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - CMD320C3-3
- Released Date Nov 21, 2024
- Last Modified Date Feb 19, 2025 12:06 PM UTC
- Pinout / Pin List Click Here (Member Only)
CMD320C3 Details
-
Manufacturer Part Number:
CMD320C3
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Factory Lead Time:
22 Weeks
-
Date Of Intro:
2020-04-08
-
Manufacturer:
Qorvo
-
RF/Microwave Device Type:
WIDE BAND LOW POWER
CMD320C3 Frequently Asked Questions (FAQs)
-
Qorvo provides a recommended PCB layout and thermal management guide in their application note AN-1234, which includes guidelines for thermal vias, heat sinks, and PCB material selection to ensure optimal performance and reliability.
-
The biasing circuit should be designed to provide a stable voltage supply to the device, with a recommended voltage range of 4.75V to 5.25V. A decoupling capacitor of 100nF to 1uF should be placed close to the device, and a bias resistor of 1kΩ to 10kΩ should be used to set the bias current.
-
The CMD320C3 is rated for operation from -40°C to +85°C, but it's recommended to derate the device's performance at higher temperatures to ensure reliability. Consult the datasheet for specific derating guidelines.
-
Common issues with the CMD320C3 can be troubleshooted by checking the PCB layout for signal integrity issues, ensuring proper biasing and decoupling, and verifying that the device is operated within its recommended operating conditions. Qorvo also provides a troubleshooting guide in their application note AN-1235.
-
The CMD320C3 is a sensitive device and requires proper ESD protection during handling and assembly. Qorvo recommends using ESD protection devices such as TVS diodes or ESD protection arrays, and following proper ESD handling procedures to prevent damage to the device.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
CMD320C3 Overview

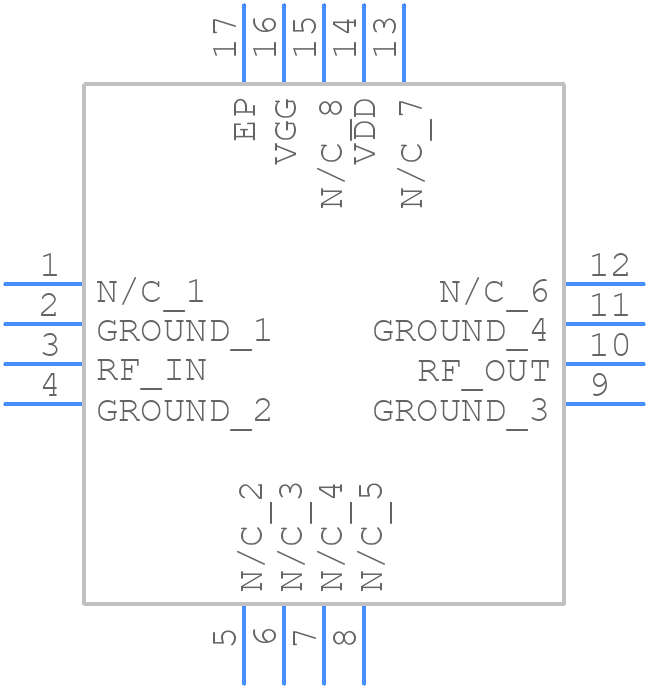

Use the download button to access the CMD320C3 schematic symbol, PCB footprint, and 3D model.
