CME2425-3 - Triad Magnetics

Description: Common Mode Chokes / Filters Inductor, Common Mode, 1.6A (RMS) Current, 0.127ohm (max.) DC Resistance, 3.8mH (min.) Inductance, 25 H (min.) Leakage

Download CME2425-3 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this CME2425-3 model

Email notifications will be applied after download.

Send part feedback

Symbol

CME2425-3 - Triad Magnetics - PCB symbol

PCB Footprints

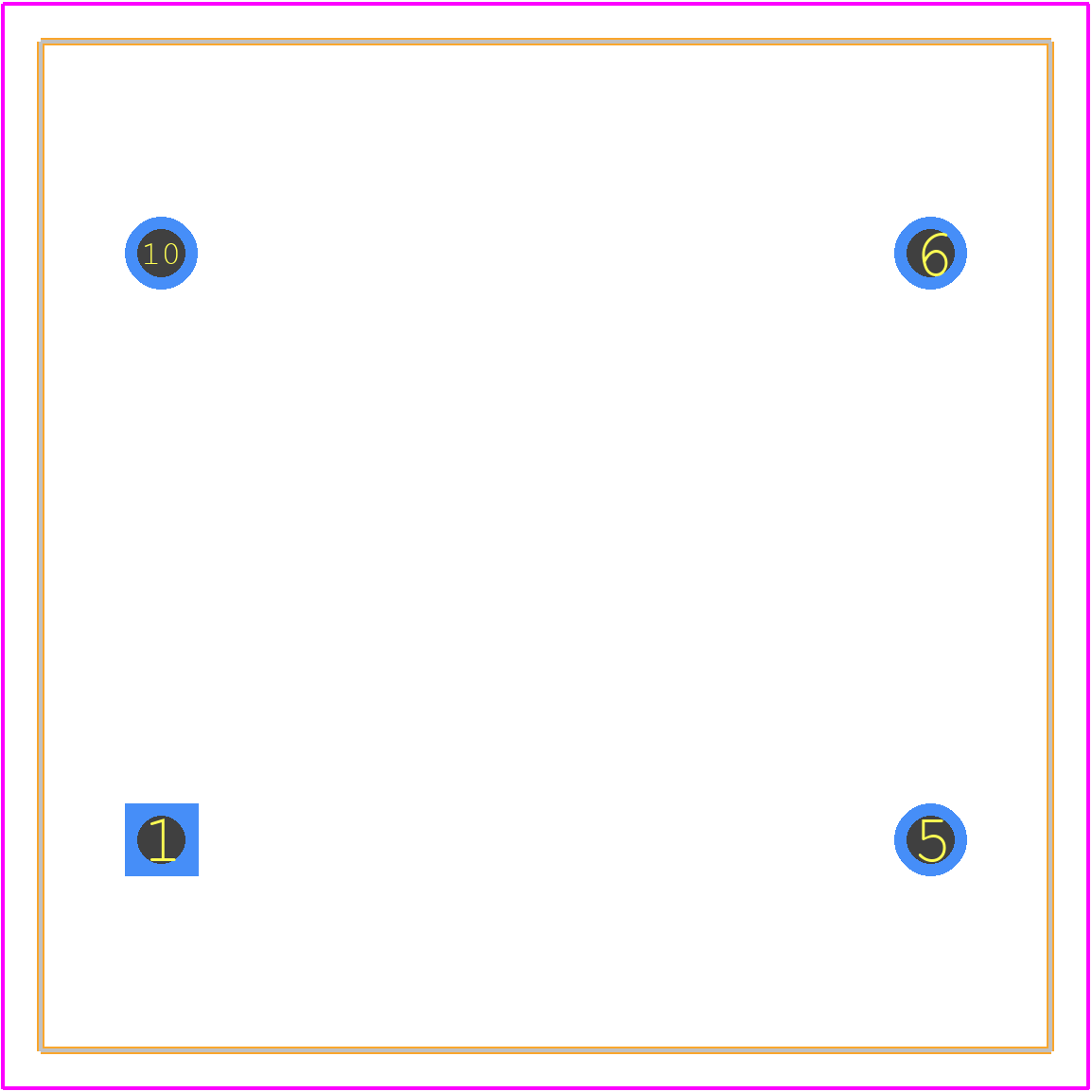

CME2425-3 - Triad Magnetics PCB footprint - Other - Other - CME2425-3-1

3D Models

CME2425-3 - Triad Magnetics - 3D model - Other - CME2425-3-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for CME2425-3
Part Number CME2425-3
Manufacturer Triad Magnetics
Pin Count 4
Part Category Inductor
Package Category Other
Footprint Name Other - CME2425-3-1
Released Date May 28, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

CME2425-3 Details

Manufacturer Part Number:
CME2425-3
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT PACKAGE-10/4
Country Of Origin:
Philippines
ECCN Code:
EAR99
Manufacturer:
Triad Magnetics
YTEOL:
7
Additional Feature:
INDUCTANCE 3.8 MILLI HENRY
Approvals:
UL; CSA; IEC; VDE
Filter Type:
SINGLE PHASE EMI FILTER
Mounting Type:
THROUGH HOLE MOUNT
Number of Terminals:
10

Trust Checks

Expert Contribution

System Verified

Community Approved

CME2425-3 Overview

Use the download button to access the CME2425-3 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like CME24, or try a keyword search, such as Mains Filters
