MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the device should be connected to a heat sink or a thermal management system.
MACOM provides a recommended matching network topology in the application note. Optimize the component values using simulation tools like Genesys or ADS, and consider using a tunable matching network for optimal performance.
The maximum safe operating temperature for the CMPA0530002S is 150°C. However, it's recommended to operate the device at a temperature below 120°C for optimal reliability and performance.
Ensure the input and output impedances are well-matched, and the circuit is properly biased. Add resistive feedback or a stability network if necessary. Also, consider using a shielded enclosure and proper grounding to minimize electromagnetic interference.
MACOM recommends a voltage-controlled biasing scheme. Set the quiescent current by adjusting the voltage on the VGG pin, typically between 2.5V to 4.5V, depending on the desired operating point.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CMPA0530002S Overview

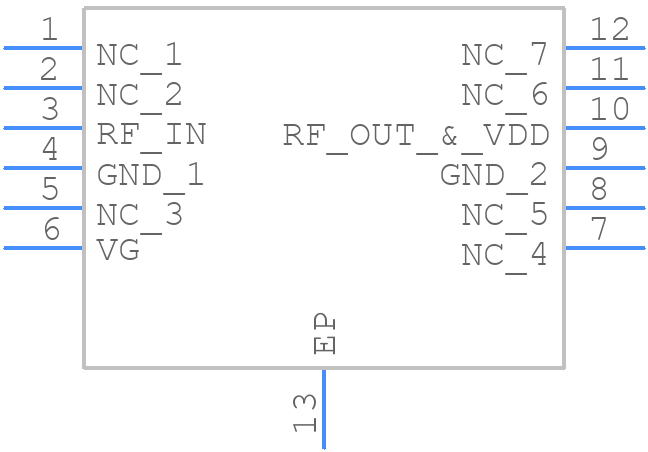

Use the download button to access the CMPA0530002S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMPA0,
or try a keyword search, such as RF Power Field-Effect Transistors
