Wolfspeed recommends a PCB layout with a solid copper ground plane, thermal vias, and a heat sink attached to the device. A thermal management guide is available on the Wolfspeed website, which provides detailed guidelines for optimal thermal performance.
To ensure reliable operation and prevent overheating, it's essential to follow the recommended operating conditions, including temperature, voltage, and current. Additionally, implement a thermal monitoring and shutdown mechanism to prevent damage from excessive temperatures.
A typical application circuit for the CMPA0530002S includes a DC power supply, input matching network, output matching network, and a biasing circuit. Wolfspeed provides a reference design and application notes that can be used as a starting point for designing a custom circuit.
To troubleshoot common issues, start by verifying the PCB layout and assembly, ensuring that the device is properly soldered and connected. Check the input and output matching networks, and verify that the biasing circuit is functioning correctly. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
To prevent damage, store the CMPA0530002S in a dry, cool place, away from direct sunlight and moisture. Handle the device by the edges, avoiding touching the pins or die. Use anti-static packaging and follow ESD handling procedures to prevent electrostatic discharge damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CMPA0530002S Overview

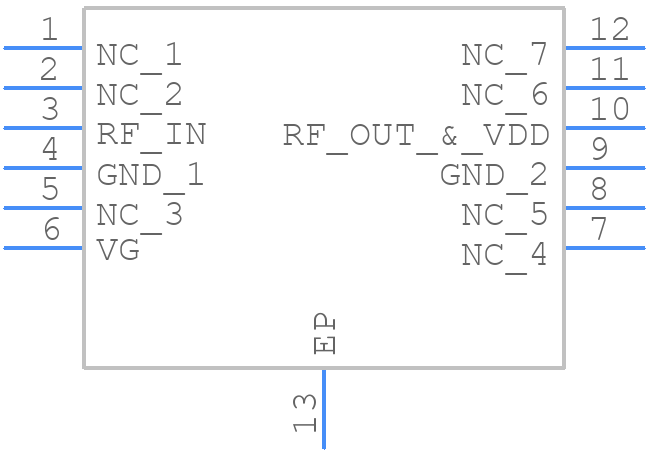

Use the download button to access the CMPA0530002S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMPA0,
or try a keyword search, such as RF Power Field-Effect Transistors
