MACOM recommends a 4-layer PCB with a solid ground plane, and a thermal pad connected to a heat sink or a thermal via to ensure efficient heat dissipation. A minimum of 10 mils of clearance around the device is recommended to prevent thermal coupling.
MACOM provides a set of recommended matching networks in the application note AN-60-033. Additionally, engineers can use simulation tools like Genesys or ADS to optimize the matching networks for their specific application.
The maximum safe operating temperature for the CMPA0560008S is 150°C. However, MACOM recommends operating the device at a maximum temperature of 125°C to ensure optimal performance and reliability.
Yes, the CMPA0560008S can be used in a push-pull configuration to achieve higher output power and improved linearity. However, this requires careful design and simulation to ensure proper biasing and matching.
MACOM recommends a voltage-controlled biasing scheme using a voltage regulator and a resistive divider network to set the gate voltage. The recommended bias voltage is 2.5V to 3.5V, depending on the application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CMPA0560008S Overview

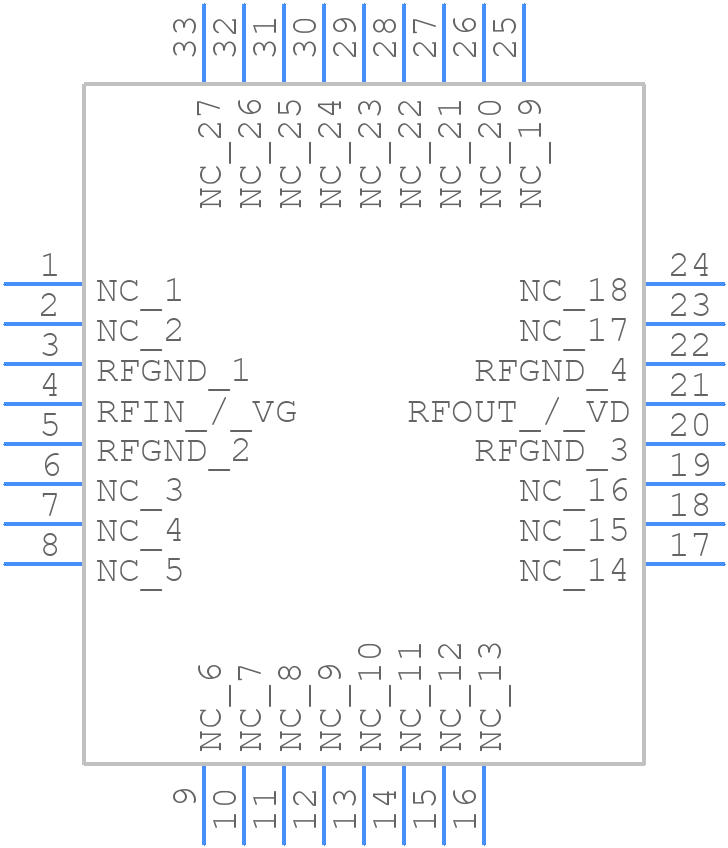

Use the download button to access the CMPA0560008S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMPA0,
or try a keyword search, such as RF/Microwave Amplifiers
