CMPA901A020S - Wolfspeed

Description: RF JFET Transistors 20W, GaN MMIC Power Amplifier, 28V, 9.0-10.0GHz, QFN, 6x6mm

Download CMPA901A020S Model

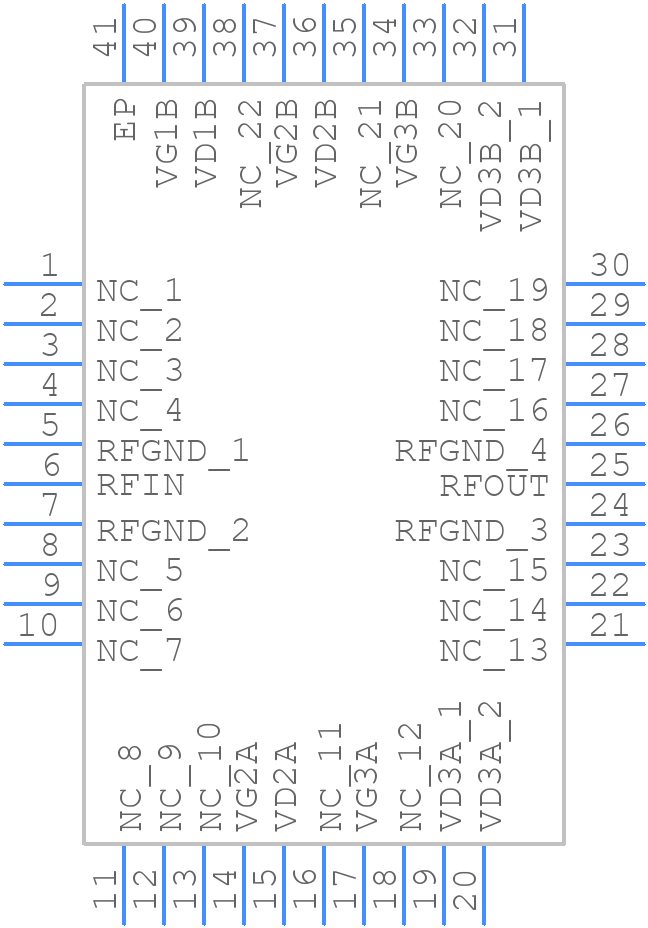

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CMPA901A020S - Wolfspeed PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - Package 6 x 6 QFN
click to zoom
3D Models
CMPA901A020S - Wolfspeed  - 3D model - Quad Flat No-Lead - Package 6 x 6 QFN
click to zoom

CMPA901A020S Details

  • Manufacturer Part Number:

    CMPA901A020S

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    MO-220, QFN-40

  • Manufacturer:

    Wolfspeed

  • Construction:

    COMPONENT

  • Gain:

    35 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Frequency-Max:

    10000 MHz

  • Operating Frequency-Min:

    9000 MHz

  • Operating Temperature-Max:

    225 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Power Supplies:

    28 V

  • RF/Microwave Device Type:

    POWER AMPLIFIER

  • Surface Mount:

    YES

  • Technology:

    GAN

  • VSWR-Max:

    5

CMPA901A020S Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a thermal via array underneath the device is recommended. The thermal vias should be connected to a solid copper plane on the bottom layer to dissipate heat efficiently.
  • Use a low-loss substrate, minimize trace lengths, and use a 50-ohm transmission line to match the device's output impedance. Also, ensure proper decoupling and bypassing of the power supply lines.
  • The maximum junction temperature (Tj) is 175°C. However, it's recommended to operate the device at a temperature below 150°C to ensure reliability and minimize degradation.
  • Yes, the CMPA901A020S can be used in a push-pull configuration. However, ensure that the devices are properly matched, and the layout is symmetrical to minimize uneven heating and thermal runaway.
  • The recommended input and output matching networks can be found in the application note or the device's evaluation board documentation. These networks are optimized for maximum power transfer and minimum loss.
