The recommended PCB layout and land pattern can be found in the CMS-2214TB application note or by contacting Nidec Copal Electronics Corporation's technical support. A good layout should ensure minimal noise coupling, proper grounding, and adequate thermal dissipation.
Proper thermal management is crucial for the CMS-2214TB. Ensure good airflow around the device, use a heat sink if necessary, and follow the recommended thermal interface material and mounting guidelines. The device's thermal resistance (θja) is typically around 20°C/W.
The recommended soldering profile for the CMS-2214TB is a peak temperature of 260°C (500°F) with a dwell time of 10-30 seconds. A soldering iron with a temperature range of 350-400°C (662-752°F) is recommended. Always follow the manufacturer's soldering guidelines and industry standards (e.g., IPC-J-STD-001).
The CMS-2214TB is designed to withstand moderate vibrations, but it's essential to ensure proper mounting and securing of the device to the PCB. Additional mechanical support or potting may be necessary for high-vibration applications. Consult with Nidec Copal Electronics Corporation's technical support for specific guidance.
To troubleshoot issues with the CMS-2214TB, start by verifying the PCB layout, component selection, and soldering quality. Check for noise coupling, improper grounding, and inadequate decoupling. Consult the datasheet, application notes, and Nidec Copal Electronics Corporation's technical support for guidance on specific issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CMS-2214TB Overview

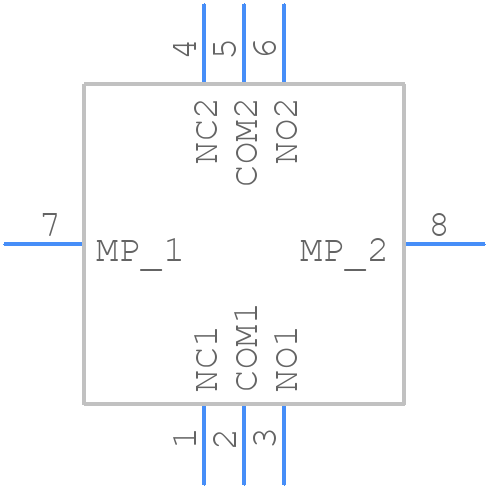

Use the download button to access the CMS-2214TB schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like CMS-2,
or try a keyword search, such as Slide Switches
