CMS300 - SILICON SENSING SYSTEMS

Description: ACCELEROMETER, 3-AXIS, DIGITAL, LCC; MEMS Sensor Output:Digital; Measurement Axis:X, Y, Z; Acceleration Range:± 2.5g, ± 10g; Supply Voltage Min:3.15V; Supply Voltage Max:3.45V; Sensor Case Style:LCC; No. of Pins:-; Sensitivity Typ:- RoHS Compliant: Yes

Download CMS300 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

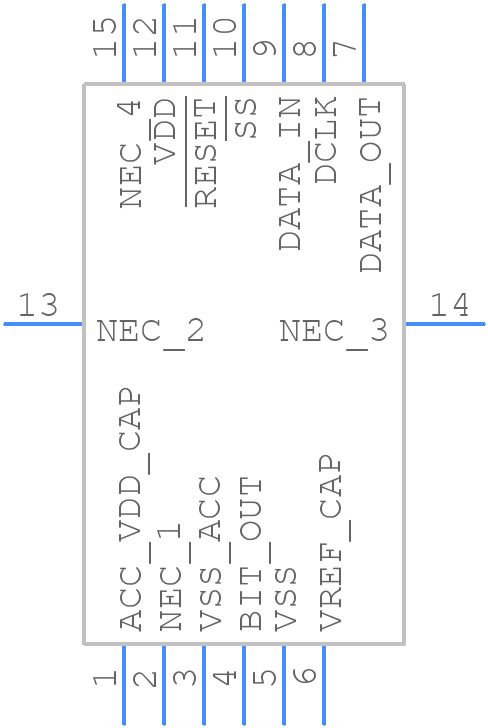

Symbol
CMS300 - SILICON SENSING SYSTEMS - PCB symbol
click to zoom
PCB Footprints
CMS300 - SILICON SENSING SYSTEMS PCB footprint - Other - Other - 10.4 x 6.0 x 2.2mm
click to zoom

CMS300 Details

  • Manufacturer Part Number:

    CMS300

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    10.40 X 6 MM, 2.20 MM HEIGHT, ROHS COMPLIANT, HERMETIC SEALED, CERAMIC, LCC-15

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Silicon Sensing

  • Additional Feature:

    ALSO OPERATES WITH 2.7 V TO 3.6 V

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-CQCC-N15

  • JESD-609 Code:

    e4

  • Length:

    10.4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    15

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    QCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Seated Height-Max:

    2.18 mm

  • Supply Voltage-Max (Vsup):

    3.45 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    GOLD OVER NICKEL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.9 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

CMS300 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VDD (1.8V) first, followed by VDDIO (1.8V or 3.3V), and then the clock signal. This ensures proper initialization of the device.
  • The CMS300 can be configured for different measurement ranges by setting the appropriate values for the RANGE pin and the internal gain settings. Refer to the application note AN001 for detailed configuration guidelines.
  • The CMS300 is designed to measure vibrations up to 1 kHz. However, the maximum allowable vibration frequency depends on the specific application and the desired measurement accuracy. It is recommended to consult with Silicon Sensing's application engineers for specific guidance.
  • The CMS300 is rated for operation up to 85°C. However, it can be used in high-temperature environments with proper thermal management and derating. Consult with Silicon Sensing's application engineers for specific guidance on high-temperature applications.
  • The CMS300 requires calibration for optimal performance. Silicon Sensing provides a calibration procedure in the application note AN002. It is recommended to follow this procedure to ensure accurate measurements.
