CMS390 - SILICON SENSING SYSTEMS

Description: SILICON SENSING SYSTEMS - CMS390 - ACCELEROMETER, 3-AXIS, DIGITAL, LCC

Download CMS390 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

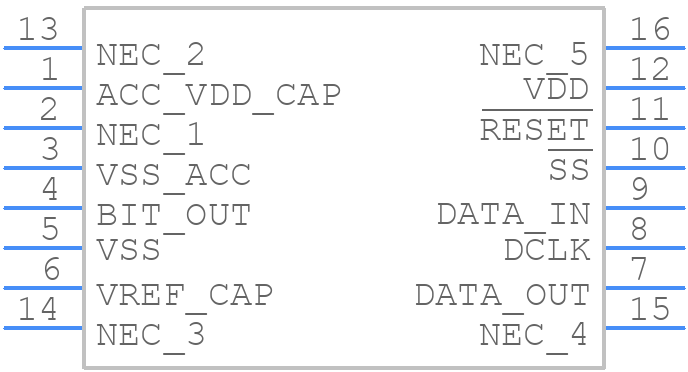

CMS390 - SILICON SENSING SYSTEMS - PCB symbol
click to zoom
PCB Footprints
CMS390 - SILICON SENSING SYSTEMS PCB footprint - Other - Other - CMS390-2
click to zoom
3D Models
CMS390 - SILICON SENSING SYSTEMS - 3D model - Other - CMS390-2
click to zoom

CMS390 Details

  • Manufacturer Part Number:

    CMS390

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    10.40 X 6.70 MM, 2.70 MM HEIGHT, ROHS COMPLIANT, HERMETIC SEALED, CERAMIC, LCC-16

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Silicon Sensing

  • Additional Feature:

    ALSO OPERATES WITH 2.7 V TO 3.6 V

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-CDSO-N16

  • JESD-609 Code:

    e4

  • Length:

    10.4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    SON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    2.7 mm

  • Supply Voltage-Max (Vsup):

    3.45 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    GOLD OVER NICKEL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.9 mm

  • Terminal Position:

    DUAL

  • Width:

    6.7 mm

CMS390 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the CMS390 involves placing the device near the edge of the board, with the sensitive axis perpendicular to the board. This helps to minimize interference and ensure accurate measurements.
  • The CMS390 does not require calibration in the classical sense. However, it's recommended to perform a one-time axis alignment procedure to ensure accurate measurements. This involves rotating the device through 360 degrees while taking measurements to determine the axis of sensitivity.
  • The CMS390 is rated for operation from -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and accuracy.
  • Yes, the CMS390 is designed to operate in high-vibration environments. However, it's recommended to follow proper mounting and installation procedures to ensure the device is securely fastened to the host system.
  • The CMS390 has a latency of approximately 1.5 ms, which is the time it takes for the device to respond to a change in the magnetic field.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CMS390 Overview

Use the download button to access the CMS390 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMS39, or try a keyword search, such as Other Signal Circuits
