CMT-8115 - Triad Magnetics

Description: Common Mode Chokes / Filters COMMON MODE INDUCTOR - L = 1.2 mH MIN @ 1KHZ, I = 16A MAX

Download CMT-8115 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

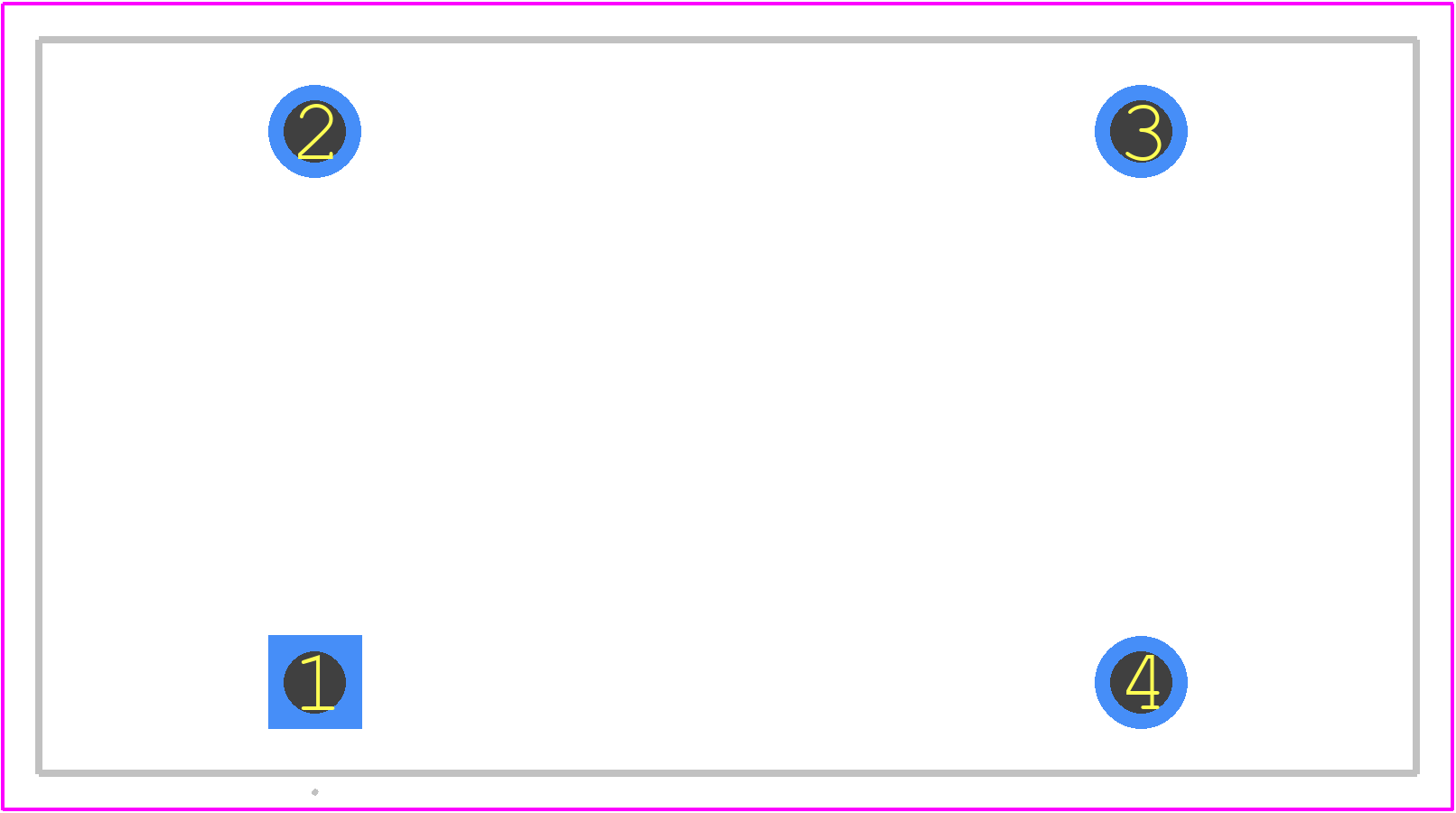

CMT-8115 - Triad Magnetics PCB footprint - Other - Other - CMT-8115-1
click to zoom
3D Models
CMT-8115 - Triad Magnetics  - 3D model - Other - CMT-8115-1
click to zoom

CMT-8115 Details

  • Manufacturer Part Number:

    CMT-8115

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-4

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    7

  • Additional Feature:

    INDUCTANCE 1.2 MILLI HENRY

  • Approvals:

    UL; CSA; IEC; VDE

  • Filter Type:

    SINGLE PHASE EMI FILTER

  • Height:

    38.86 mm

  • Length:

    38.1 mm

  • Mounting Type:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    4

  • Width:

    20.32 mm

CMT-8115 Frequently Asked Questions (FAQs)

  • Triad Magnetics recommends a layout with a symmetrical and balanced design, keeping the primary and secondary windings as close as possible to minimize leakage inductance and ensure optimal coupling. A 4-layer PCB with a dedicated ground plane is also recommended.
  • The CMT-8115 meets UL and IEC safety standards, but it's essential to follow proper design and testing guidelines to ensure compliance. This includes using the transformer in a properly designed and certified power supply, following creepage and clearance guidelines, and performing necessary safety testing.
  • The CMT-8115 has a maximum operating temperature range of -40°C to +125°C, but derating is required above 100°C. It's essential to ensure the transformer is operated within the recommended temperature range to maintain reliability and performance.
  • The CMT-8115 is designed to meet standard vibration and shock requirements, but it's essential to ensure the transformer is properly secured and mounted to withstand the expected environmental conditions. Additional testing and validation may be required for extreme environments.
  • Common issues with the CMT-8115 can often be traced back to improper design, layout, or component selection. Troubleshooting should start with verifying the design and layout, checking for proper component selection and rating, and ensuring the transformer is operated within the recommended specifications.
