CMT-8120 - Triad Magnetics

Description: 2.4 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 17A DCR 8mOhm

Download CMT-8120 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

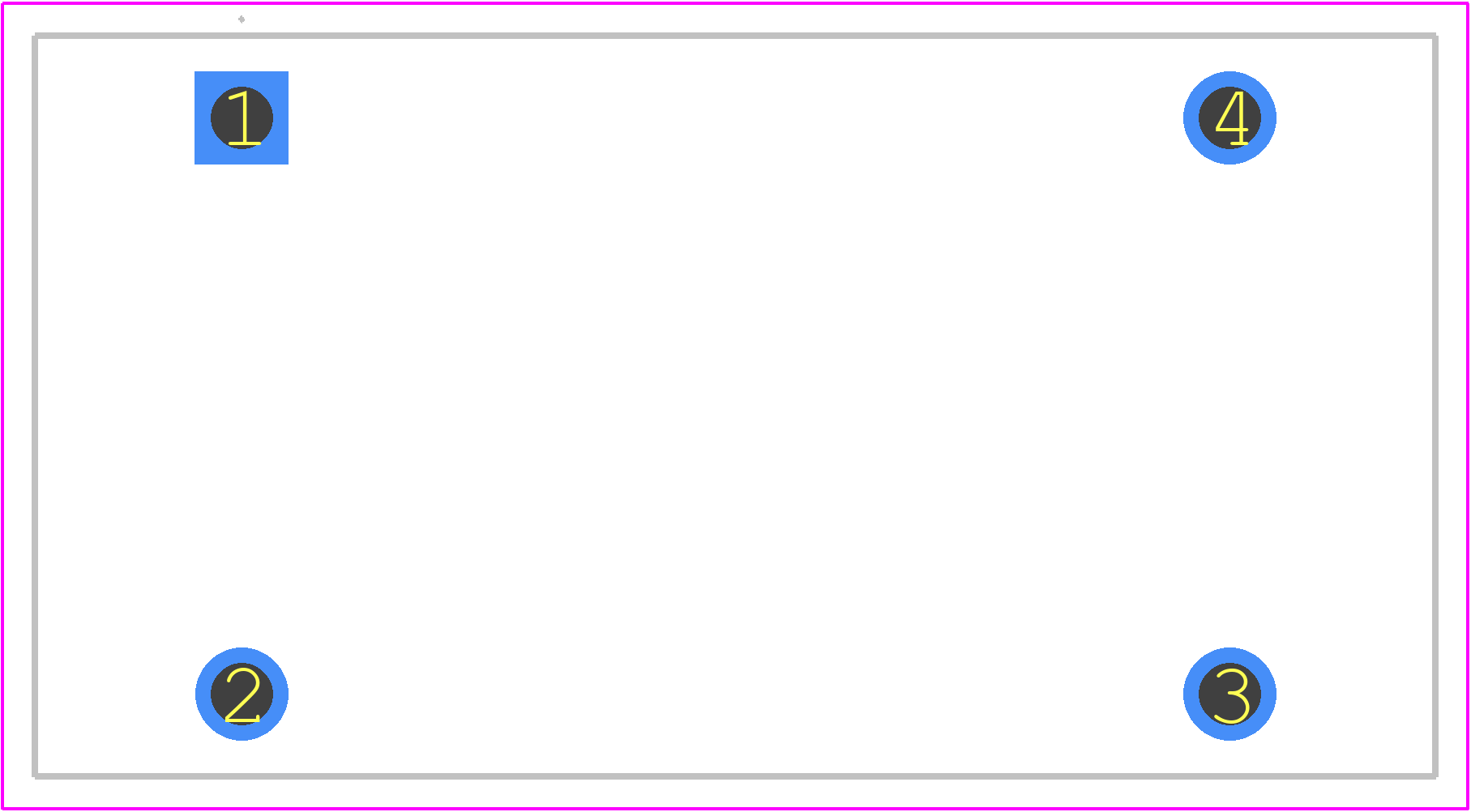

CMT-8120 - Triad Magnetics PCB footprint - Other - Other - CMT-8120-1
click to zoom
3D Models
CMT-8120 - Triad Magnetics  - 3D model - Other - CMT-8120-1
click to zoom

CMT-8120 Details

  • Manufacturer Part Number:

    CMT-8120

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-4

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    7

  • Additional Feature:

    INDUCTANCE 2.4 MILLI HENRY

  • Approvals:

    UL; CSA; IEC; VDE

  • Filter Type:

    SINGLE PHASE EMI FILTER

  • Height:

    41.91 mm

  • Length:

    43.18 mm

  • Mounting Type:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    4

  • Width:

    22.86 mm

CMT-8120 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the CMT-8120 is -40°C to 125°C, although it can withstand storage temperatures from -40°C to 150°C.
  • To ensure proper ventilation, maintain a minimum clearance of 1 inch (2.54 cm) around the transformer, and avoid blocking airflow to the device. Additionally, consider using a heat sink or thermal interface material to improve heat dissipation.
  • The maximum allowable voltage imbalance between the primary and secondary windings is ±10% to ensure reliable operation and prevent damage to the transformer.
  • While the CMT-8120 is designed to operate in a variety of environments, it's not recommended for use in high-humidity environments (>80% RH) without proper protection, such as conformal coating or potting, to prevent moisture ingress and corrosion.
  • To minimize electromagnetic interference (EMI) and ensure reliable operation, follow the recommended PCB layout and spacing guidelines provided in the datasheet, including maintaining a minimum clearance of 0.1 inch (2.54 mm) between the transformer and other components.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CMT-8120 Overview

Use the download button to access the CMT-8120 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMT-8, or try a keyword search, such as Mains Filters
