CMT-8121 - Triad Magnetics

Description: Common Mode Chokes / Filters COMMON MODE INDUCTOR - L = 1 mH MIN @ 1KHZ, I = 20A MAX

Download CMT-8121 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CMT-8121 - Triad Magnetics - PCB symbol
click to zoom
PCB Footprints

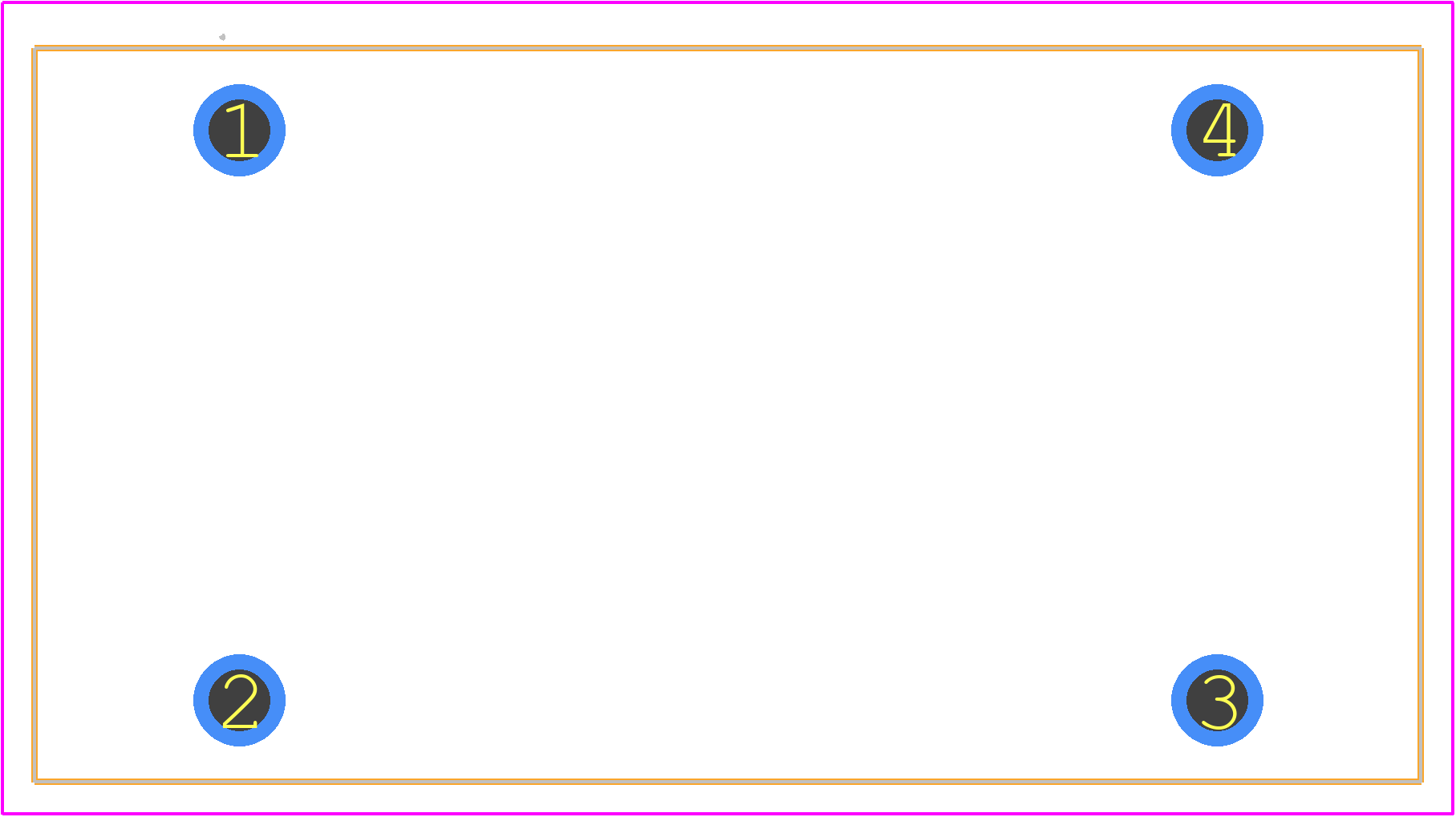

CMT-8121 - Triad Magnetics PCB footprint - Other - Other - CMT-8121-2
click to zoom
3D Models
CMT-8121 - Triad Magnetics - 3D model - Other - CMT-8121-2
click to zoom

CMT-8121 Details

  • Manufacturer Part Number:

    CMT-8121

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-4

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    7

  • Additional Feature:

    INDUCTANCE 1.0 MILLI HENRY

  • Approvals:

    UL; CSA; IEC; VDE

  • Filter Type:

    SINGLE PHASE EMI FILTER

  • Height:

    41.91 mm

  • Length:

    43.18 mm

  • Mounting Type:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    4

  • Width:

    22.86 mm

CMT-8121 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the CMT-8121 is -40°C to 85°C.
  • Yes, the CMT-8121 is designed for high-voltage applications up to 1000Vrms.
  • The maximum current rating for the CMT-8121 is 12A.
  • Yes, the CMT-8121 is suitable for use in switching power supplies due to its low core loss and high frequency operation capabilities.
  • The recommended storage temperature range for the CMT-8121 is -40°C to 125°C.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CMT-8121 Overview

Use the download button to access the CMT-8121 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMT-8, or try a keyword search, such as Mains Filters
