CMT2-2.6-6L - COILCRAFT

Description: Common mode peak impedance (kΩ) 19.17 @ 0.64 MHz, Inductance min (mH) 2.6, Leakage Inductance max (µH) 41, Irms (A) 6, DCR max (Ω) 0.040

Download CMT2-2.6-6L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CMT2-2.6-6L - COILCRAFT - PCB symbol
click to zoom

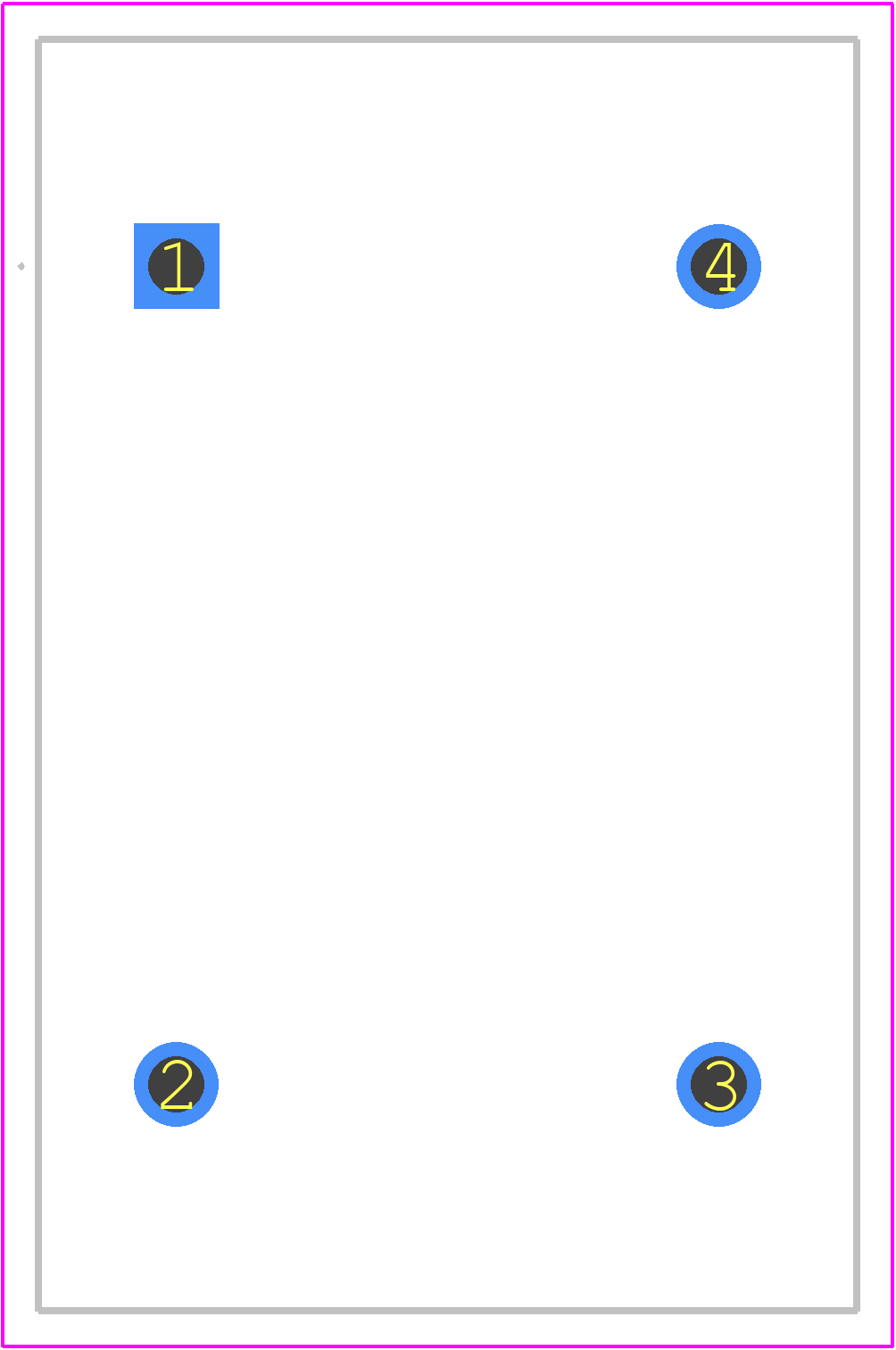

PCB Footprints
CMT2-2.6-6L - COILCRAFT PCB footprint - Other - Other - CMT2-2.6-6L-1
click to zoom
3D Models
CMT2-2.6-6L - COILCRAFT - 3D model - Other - CMT2-2.6-6L-1
click to zoom

CMT2-2.6-6L Details

  • Manufacturer Part Number:

    CMT2-2.6-6L

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.59

  • Approvals:

    UL

  • DC Resistance-Max:

    0.04 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    35.6 mm

  • Inductance:

    2600 µH

  • JESD-609 Code:

    e2

  • Length:

    35.6 mm

  • Mounting Type:

    THROUGH HOLE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    19170 OHM Ω

  • Packing Method:

    TRAY

  • Rated Current:

    6 A

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Width:

    22.9 mm

CMT2-2.6-6L Frequently Asked Questions (FAQs)

  • Coilcraft provides a recommended PCB land pattern in their application notes, which can be found on their website. The recommended land pattern is a rectangular pad with dimensions of 2.5 mm x 1.5 mm, with a 0.5 mm x 0.5 mm thermal relief pad in the center.
  • To ensure reliable soldering, it is recommended to use a soldering iron with a temperature of 250°C to 270°C, and to apply a small amount of solder paste to the PCB land pattern. The component should be placed on the PCB and reflowed in a nitrogen atmosphere to prevent oxidation.
  • The maximum operating temperature of the CMT2-2.6-6L is 125°C, as specified in the datasheet. However, it is recommended to derate the component's current rating by 1.5% for every degree above 80°C to ensure reliable operation.
  • Yes, the CMT2-2.6-6L is designed for high-frequency applications up to 1 GHz. However, it is recommended to consult Coilcraft's high-frequency modeling data and application notes to ensure proper design and implementation.
  • Yes, the CMT2-2.6-6L is compatible with lead-free soldering processes, and is RoHS compliant. However, it is recommended to follow the recommended soldering profile and temperature guidelines to ensure reliable assembly.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CMT2-2.6-6L Overview

Use the download button to access the CMT2-2.6-6L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMT2-, or try a keyword search, such as Data Line Filters

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
