- Part Number CMT4-10-15L
- Manufacturer COILCRAFT
- Pin Count 4
- Part Category Filter
- Package Category Other

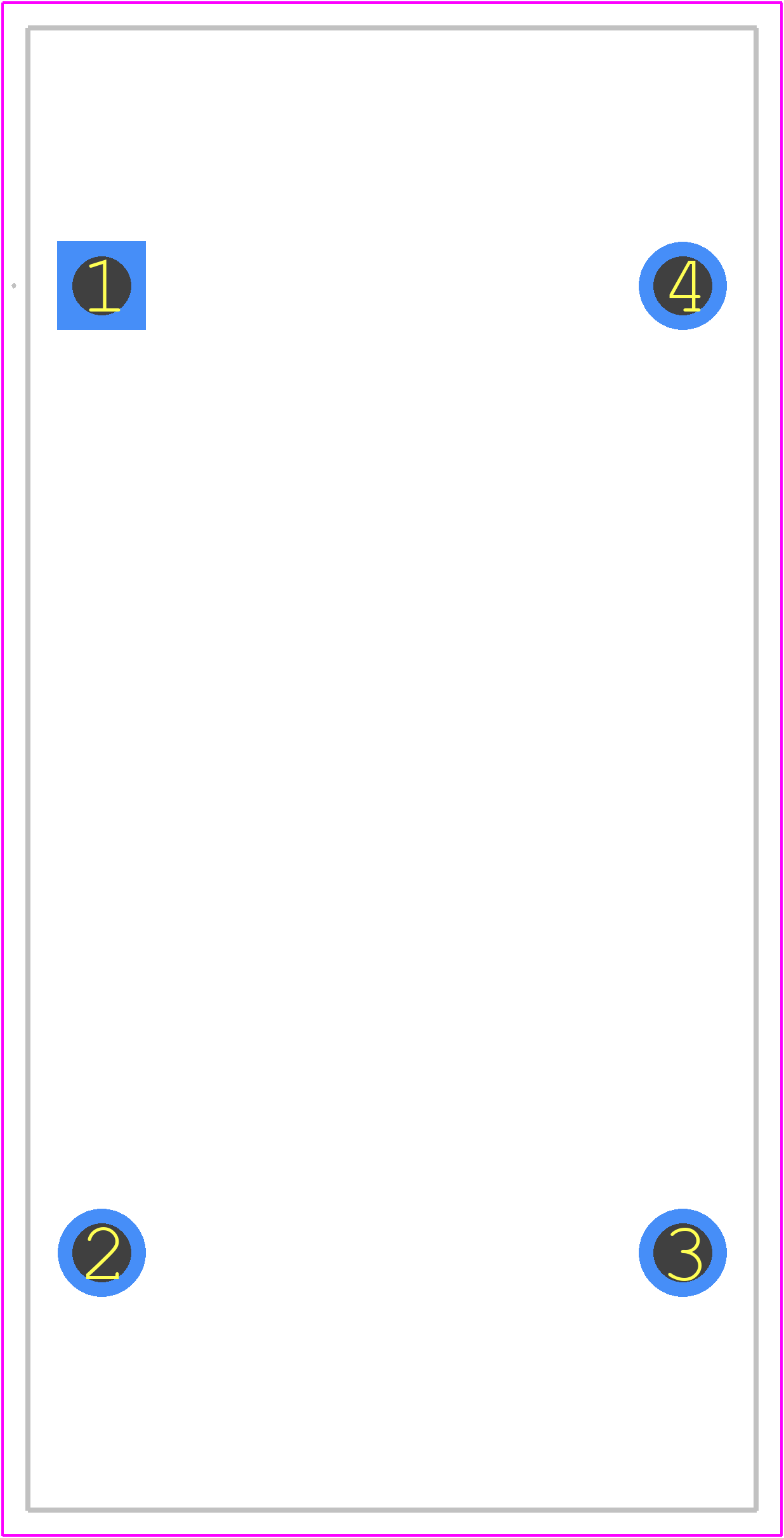

- Footprint Name Other - CMT4-10-15L-2
- Released Date Feb 27, 2024
- Last Modified Date Feb 27, 2024 10:01 AM UTC
- Pinout / Pin List Click Here (Member Only)
CMT4-10-15L Details
-
Manufacturer Part Number:
CMT4-10-15L
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8504.50.80.00
-
Manufacturer:
Coilcraft Inc
-
YTEOL:
7
-
Approvals:
UL
-
DC Resistance-Max:
0.029 Ω
CMT4-10-15L Frequently Asked Questions (FAQs)
-
Coilcraft provides a recommended PCB land pattern in their application note AN-40, which can be found on their website. The land pattern is designed to ensure proper soldering and thermal management.
-
Coilcraft recommends following their guidelines for vibration testing and design considerations, as outlined in their application note AN-41. This includes using a secure mounting method, such as soldering or adhesive, and ensuring the component is properly supported.
-
While the datasheet specifies an operating temperature range of -40°C to +125°C, Coilcraft recommends derating the component's current rating at higher temperatures to ensure reliability. Consult Coilcraft's application note AN-42 for more information on temperature derating.
-
Coilcraft recommends following their guidelines for moisture sensitivity, as outlined in their application note AN-43. This includes using a conformal coating and ensuring the component is properly sealed to prevent moisture ingress.
-
Coilcraft recommends following their guidelines for EMI suppression, as outlined in their application note AN-44. This includes using shielding, filtering, and proper PCB layout techniques to minimize EMI.
