CMV4000-3E5M1PP - ams OSRAM

CMV4000-3E5M1PP Details

• Manufacturer Part Number:

  CMV4000-3E5M1PP

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

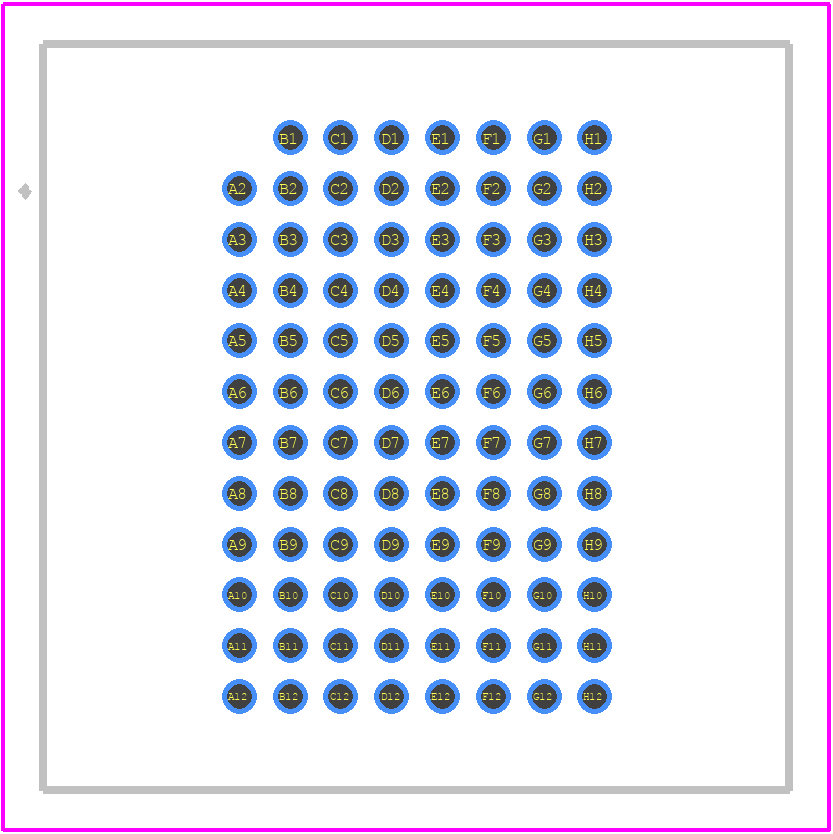

• Package Description:

  PGA-95

• Factory Lead Time:

  30 Weeks

• Manufacturer:

  ams OSRAM Group

• YTEOL:

  6

• Additional Feature:

  GLOBAL SHUTTER, EXTENDED DYNAMIC RANGE UPTO 90 DB

• Array Type:

  FRAME

• Body Breadth:

  16.05 mm

• Body Height:

  2.75 mm

• Body Length or Diameter:

  16.15 mm

• Data Rate:

  480 Mbps

• Dynamic Range:

  60 dB

• Frame Rate:

  37 fps

• Horizontal Pixel:

  2048

• Housing:

  CERAMIC

• JESD-609 Code:

  e3

• Master Clock:

  48 MHz

• Mounting Feature:

  THROUGH HOLE MOUNT

• Operating Current-Max:

  90 mA

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -30 °C

• Optical Format:

  1 inch

• Output Interface Type:

  SPI INTERFACE

• Output Range:

  0.40-2.40V

• Output Type:

  ANALOG VOLTAGE

• Package Shape/Style:

  RECTANGULAR

• Pixel Size:

  5.5X5.5 µm

• Sensitivity (V/lx.s):

  5.56 V/lx.s

• Sensors/Transducers Type:

  IMAGE SENSOR,CMOS

• Spectral Response (nm):

  400-1000

• Supply Voltage-Max:

  3.4 V

• Supply Voltage-Min:

  3.2 V

• Surface Mount:

  NO

• Terminal Finish:

  Matte Tin (Sn)

• Termination Type:

  SOLDER

• Vertical Pixel:

  2048
