CMX1616X282B-10 - Laird Technologies

Description: 2.816 mH @ 100 kHz 2 Line Common Mode Choke Through Hole 14A DCR 11mOhm , 250V , -40°C ~ 125°C

Download CMX1616X282B-10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CMX1616X282B-10 - Laird Technologies - PCB symbol
click to zoom
PCB Footprints

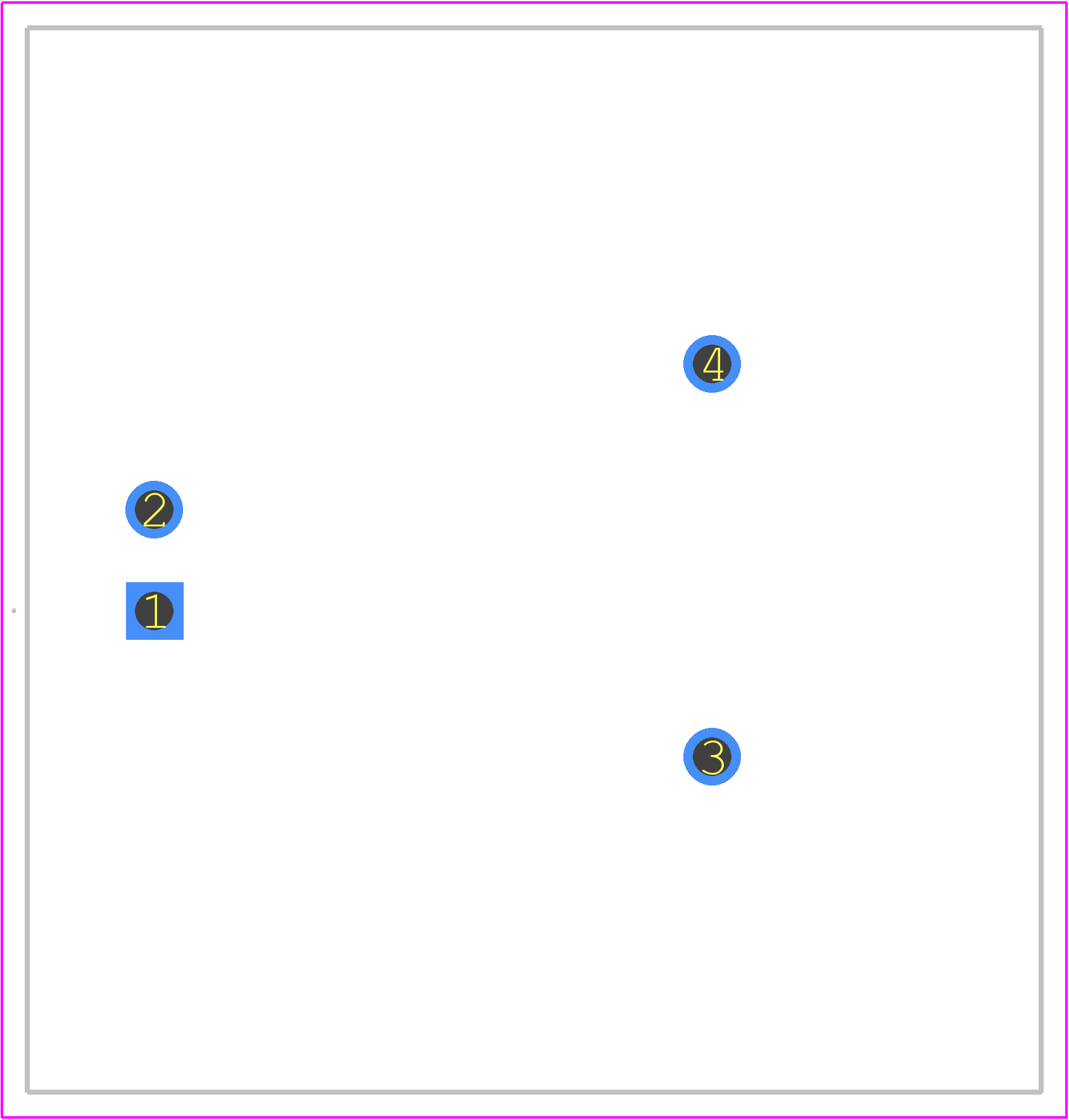

CMX1616X282B-10 - Laird Technologies PCB footprint - Other - Other - CMX1616X282B-10-2
click to zoom
3D Models
CMX1616X282B-10 - Laird Technologies - 3D model - Other - CMX1616X282B-10-2
click to zoom

CMX1616X282B-10 Details

  • Manufacturer Part Number:

    CMX1616X282B-10

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Qnity Laird

  • YTEOL:

    6.94

  • DC Resistance-Max:

    0.011 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    15.5 mm

  • Inductance:

    3802 µH

  • JESD-609 Code:

    e3

  • Length:

    42 mm

  • Mounting Type:

    THROUGH HOLE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Rated Current:

    14 A

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Width:

    40 mm

CMX1616X282B-10 Frequently Asked Questions (FAQs)

  • The recommended storage condition is in a dry, cool place, away from direct sunlight, with a temperature range of -40°C to 85°C and humidity below 80%.
  • Yes, the CMX1616X282B-10 is designed for outdoor use and can operate in temperatures ranging from -40°C to 85°C, but it's recommended to follow the IP67 rating guidelines for outdoor installations.
  • The maximum power handling capacity of the CMX1616X282B-10 is 10W, and it's recommended to follow the power handling guidelines to avoid overheating and damage to the device.
  • Yes, the CMX1616X282B-10 is compatible with Wi-Fi 6 (802.11ax) and can support data transfer rates up to 1.9 Gbps.
  • The typical lead time for delivery of the CMX1616X282B-10 is 6-8 weeks, but it may vary depending on the quantity and availability of the product.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CMX1616X282B-10 Overview

Use the download button to access the CMX1616X282B-10 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMX16, or try a keyword search, such as Data Line Filters
