Part Image

CMX200D3 - CRYDOM

Description: Sensata / Crydom 3 A rms Solid State Relay, DC, PCB Mount, MOSFET, 200 V Maximum Load

Download CMX200D3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

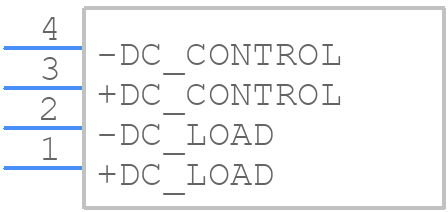

CMX200D3 - CRYDOM - PCB symbol
click to zoom
PCB Footprints
CMX200D3 - CRYDOM PCB footprint - Other - Other - CMX200D3-2
click to zoom
3D Models
CMX200D3 - CRYDOM - 3D model - Other - CMX200D3-2
click to zoom

CMX200D3 Details

  • Manufacturer Part Number:

    CMX200D3

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Crydom Inc

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE WITH BUILT-IN RESISTOR

  • Isolation Voltage-Max:

    2500 V

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • On-State Current-Max:

    3 A

  • On-state Resistance-Max:

    0.2 Ω

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -30 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

CMX200D3 Frequently Asked Questions (FAQs)

  • The CMX200D3 can handle surge currents up to 100A for 10ms, but it's recommended to derate the current to 50A for continuous operation.
  • The CMX200D3 requires a heat sink with a thermal resistance of 1°C/W or less. Ensure good thermal contact between the device and heat sink, and provide adequate airflow to prevent overheating.
  • Use a minimum of 14 AWG wire for connections to the CMX200D3 to ensure low voltage drop and minimal power loss.
  • Yes, the CMX200D3 is designed to withstand vibrations up to 10G, but ensure proper mounting and secure connections to prevent damage or disconnection.
  • Use a metal shielded cable for connections, and consider adding a common-mode choke or ferrite bead to the circuit to reduce EMI and noise susceptibility.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CMX200D3 Overview

Use the download button to access the CMX200D3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMX20, or try a keyword search, such as Solid State Relays
