A good PCB layout for the CMX7032L9 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper biasing, make sure to follow the recommended voltage and current settings outlined in the datasheet. Additionally, use a high-quality voltage regulator and decoupling capacitors to minimize noise and ensure a stable power supply.
The CMX7032L9 can generate significant heat, so it's essential to ensure good thermal management. This can be achieved by using a heat sink, ensuring good airflow, and keeping the device away from other heat-generating components.
To troubleshoot issues with the CMX7032L9, start by checking the power supply and ensuring it's stable and within the recommended range. Next, verify that the input and output impedances are matched correctly. If issues persist, check for oscillation or distortion using an oscilloscope and adjust the circuit accordingly.
To protect the CMX7032L9 from electrostatic discharge (ESD), use ESD-sensitive handling procedures, such as using an anti-static wrist strap or mat. Additionally, ensure that the PCB is designed with ESD protection in mind, including the use of ESD protection diodes and resistors.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CMX7032L9 Overview

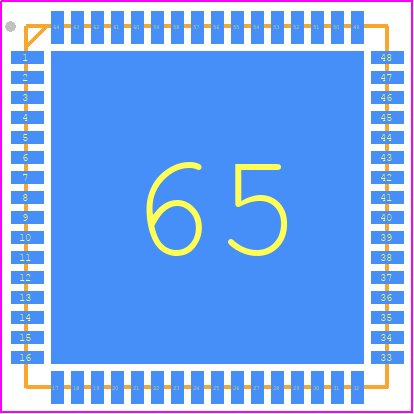

Use the download button to access the CMX7032L9 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMX70,
or try a keyword search, such as Modems
