A good PCB layout for the CMX7146Q3 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing trace lengths and loops. It's also recommended to place decoupling capacitors close to the device and use a low-ESR capacitor for the VCC pin.
To ensure reliable communication, use a balanced transmission line (e.g., twisted pair or coaxial cable) and implement proper shielding and grounding techniques. Additionally, consider using error-checking protocols, such as CRC or checksum, to detect and correct errors.
The CMX7146Q3 is rated for operation from -40°C to +85°C. However, it's essential to consider the device's thermal characteristics and ensure proper heat dissipation to prevent overheating, especially in high-power or high-temperature applications.
Yes, the CMX7146Q3 can be used in battery-powered devices. To minimize power consumption, consider using the device's power-down mode, reducing the clock frequency, and optimizing the transmit power. Additionally, use a low-dropout regulator (LDO) to minimize power loss in the voltage regulator.
To troubleshoot issues with the CMX7146Q3, start by verifying the device's configuration and settings. Check the power supply, clock frequency, and transmission line integrity. Use a logic analyzer or oscilloscope to monitor the device's signals and identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CMX7146Q3 Overview

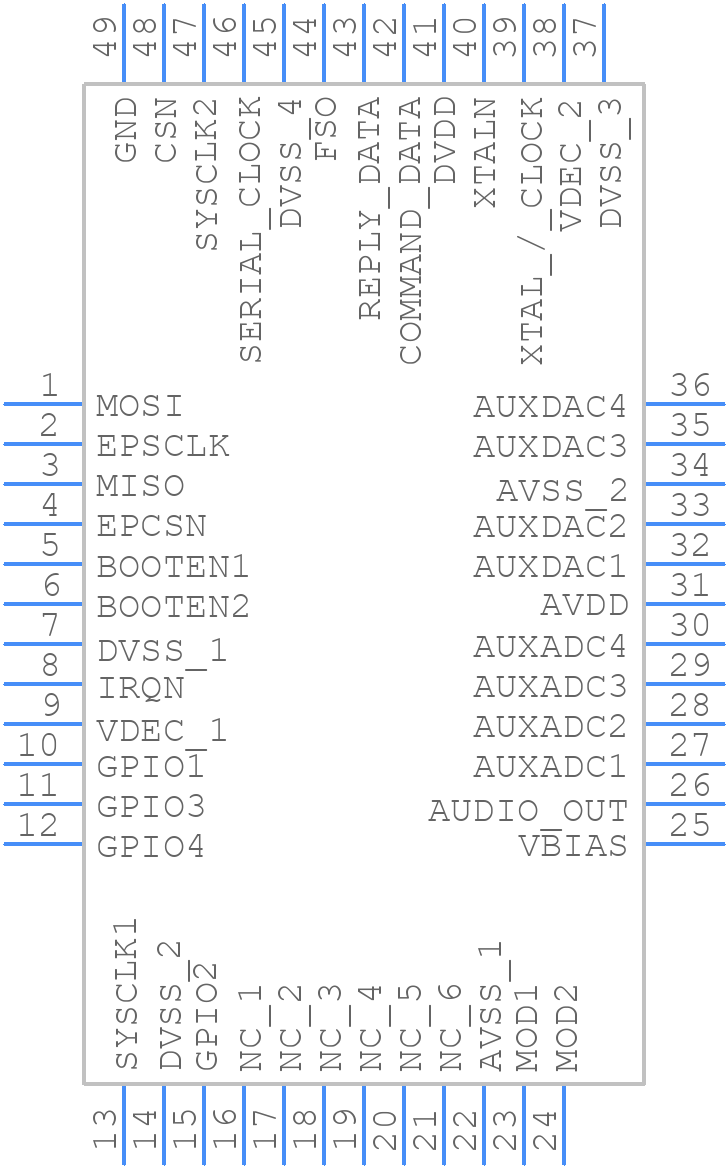

Use the download button to access the CMX7146Q3 schematic symbol, PCB footprint, and 3D model.
