A good PCB layout for the CMX7341Q3 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper biasing, make sure to follow the recommended voltage and current settings outlined in the datasheet. Additionally, use a high-quality voltage regulator and decoupling capacitors to minimize noise and ensure a stable power supply.
The CMX7341Q3 can generate significant heat, so it's essential to ensure good thermal management. This can be achieved by using a heat sink, ensuring good airflow, and keeping the device away from other heat-generating components.
To troubleshoot issues with the CMX7341Q3, start by checking the power supply and ensuring it's stable and within the recommended range. Next, verify that the input and output impedances are matched correctly. If issues persist, check for oscillation or distortion using an oscilloscope and adjust the circuit accordingly.
To test and measure the CMX7341Q3, use a signal generator to provide a known input signal, and then measure the output using an oscilloscope or spectrum analyzer. Ensure that the test equipment is calibrated and configured correctly to obtain accurate results.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CMX7341Q3 Overview

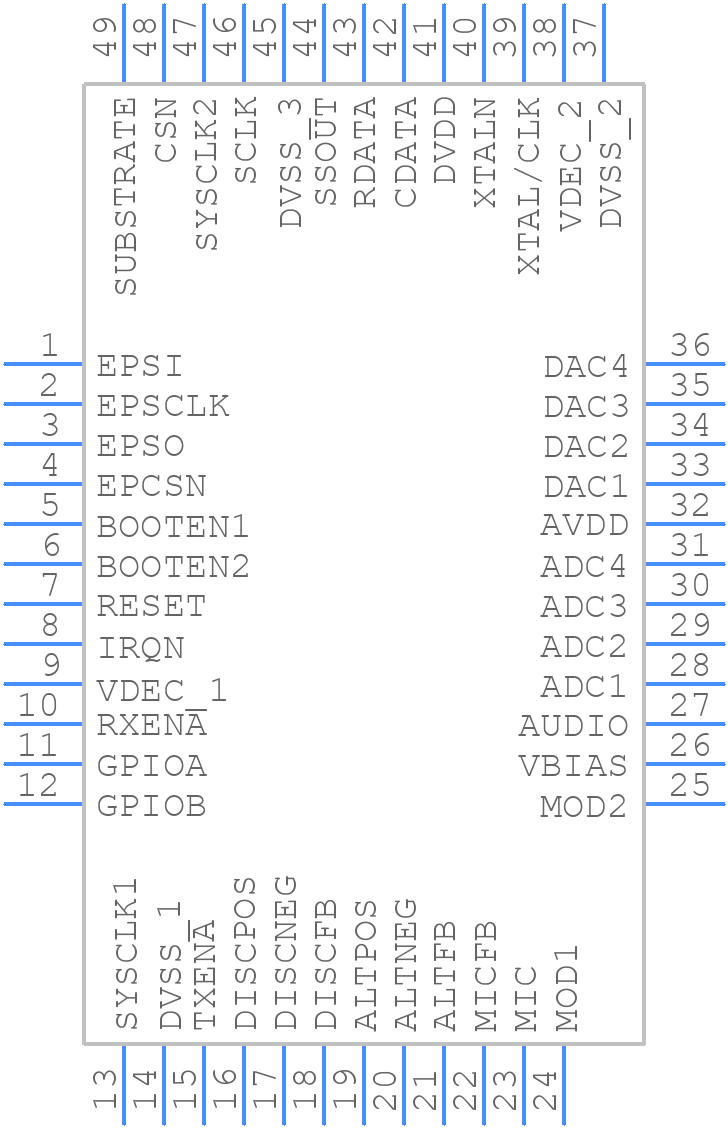

Use the download button to access the CMX7341Q3 schematic symbol, PCB footprint, and 3D model.
