The recommended power-up sequence is to apply VDD first, followed by VCC, and then the clock signal. This ensures proper initialization of the device.
To optimize for low power consumption, ensure that the device is operated at the lowest possible clock frequency, disable unused features, and use the power-down mode when not transmitting or receiving.
The maximum allowable capacitance for the crystal oscillator circuit is 20pF. Exceeding this value may affect the oscillator's stability and frequency accuracy.
Yes, but it requires careful evaluation of the device's performance and potential impact on the system's overall performance. Consult with CML Microcircuits Plc or a qualified engineer for guidance.
Use a logic analyzer or oscilloscope to monitor the device's signals, check the power supply and clock signals, and verify the configuration and programming of the device. Consult the datasheet and application notes for troubleshooting guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CMX868AD2 Overview

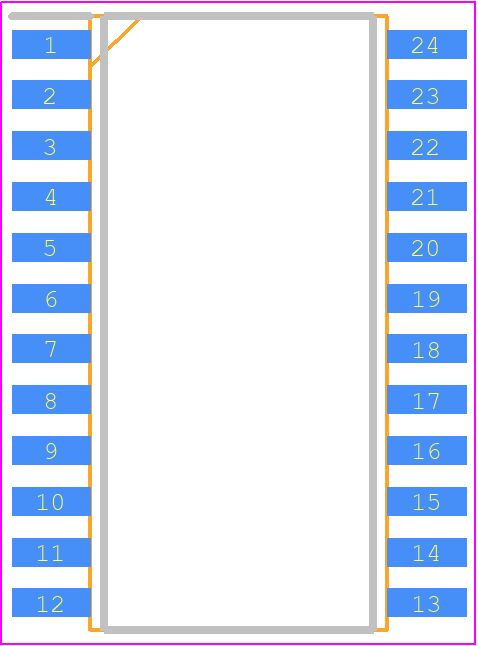

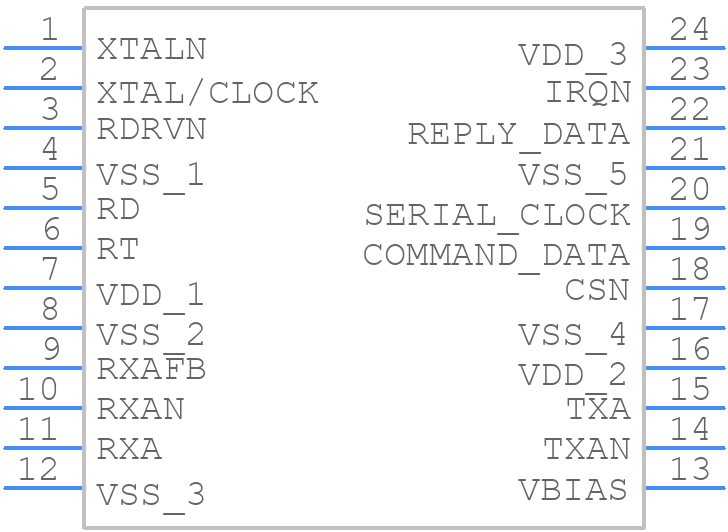

Use the download button to access the CMX868AD2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMX86,
or try a keyword search, such as Modems
