CMX972Q5 - CML Micro

Description: Modulator / Demodulator Quadrature Demoduator IF PLL VCO

Download CMX972Q5 Model

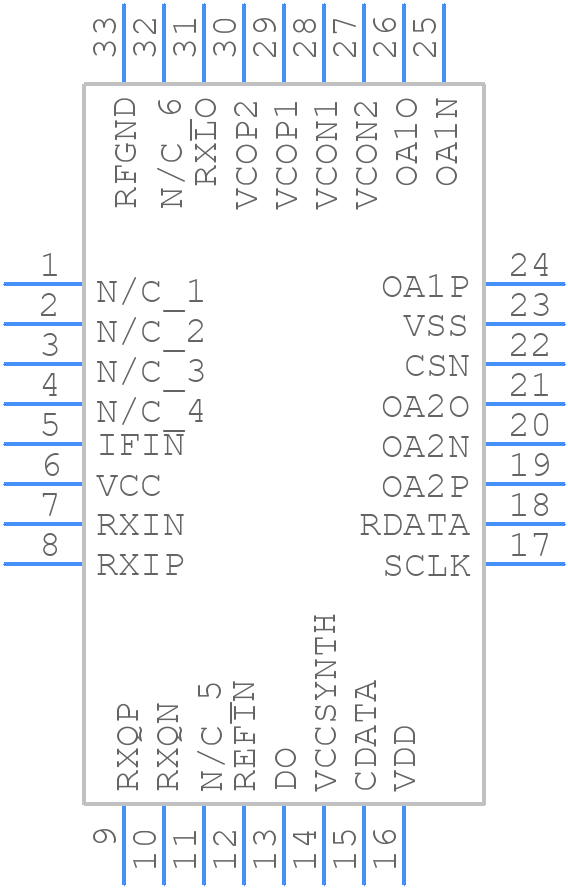

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CMX972Q5 - CML Micro PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - Q5
click to zoom
3D Models
CMX972Q5 - CML Micro  - 3D model - Quad Flat No-Lead - Q5
click to zoom

CMX972Q5 Details

  • Manufacturer Part Number:

    CMX972Q5

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    CML Microcircuits Plc

  • JESD-30 Code:

    S-PQCC-N32

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    20 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD
