CMXE60D5 - CRYDOM

Description: Sensata / Crydom 5 A SPST Solid State Relay, DC, PCB Mount, MOSFET, 60 V dc Maximum Load

Download CMXE60D5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

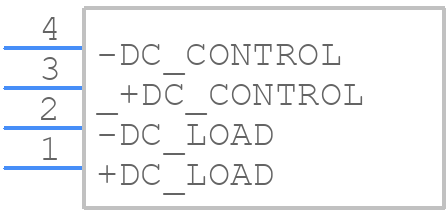

Symbol
CMXE60D5 - CRYDOM - PCB symbol
click to zoom
PCB Footprints
CMXE60D5 - CRYDOM PCB footprint - Other - Other - 4-SIP_2025
click to zoom
3D Models
CMXE60D5 - CRYDOM - 3D model - Other - 4-SIP_2025
click to zoom

CMXE60D5 Details

  • Manufacturer Part Number:

    CMXE60D5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Crydom Inc

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE WITH BUILT-IN RESISTOR

  • Isolation Voltage-Max:

    2500 V

  • Number of Elements:

    1

  • On-State Current-Max:

    5 A

  • On-state Resistance-Max:

    0.1 Ω

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -30 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

CMXE60D5 Frequently Asked Questions (FAQs)

  • The CMXE60D5 can handle surge currents up to 100A for 10ms, but it's recommended to derate the device for repetitive surges.
  • While the CMXE60D5 is rated for operation up to 85°C, it's recommended to derate the device for temperatures above 70°C to ensure reliable operation.
  • The CMXE60D5 requires a heat sink with a thermal resistance of 1°C/W or less to ensure proper cooling. A heat sink with a larger surface area and fins can help to dissipate heat more efficiently.
  • Crydom recommends using a minimum of 14 AWG wire for connections to the CMXE60D5 to ensure reliable operation and minimize voltage drop.
  • While the CMXE60D5 is not hermetically sealed, it can operate in humid environments. However, it's recommended to take precautions to prevent moisture ingress, such as conformal coating or potting.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CMXE60D5 Overview

Use the download button to access the CMXE60D5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMXE6, or try a keyword search, such as Solid State Relays
