The CN240A24 can handle surge currents up to 100A for 10ms, but it's recommended to derate the current to 80A for continuous operation.
To ensure reliability, it's recommended to derate the current by 1.5% per degree Celsius above 60°C. Additionally, ensure good thermal management, such as using a heat sink, to keep the junction temperature below 125°C.
To minimize EMI, it's recommended to use a multi-layer PCB with a solid ground plane, keep the high-current paths short and direct, and use a shielded cable for the load connection. Additionally, place the CN240A24 near the power source to reduce the length of the high-current path.
Yes, the CN240A24 can be used in a parallel configuration to increase the current handling capability. However, it's essential to ensure that the devices are matched in terms of their electrical characteristics and that the current sharing is balanced to prevent overheating.
The recommended fuse rating for the CN240A24 is 10A slow-blow or 5A fast-acting fuse. However, the actual fuse rating may vary depending on the specific application and the maximum expected fault current.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CN240A24 Overview

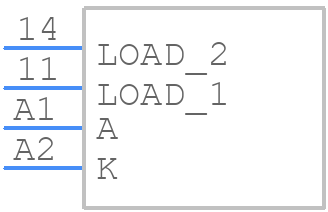

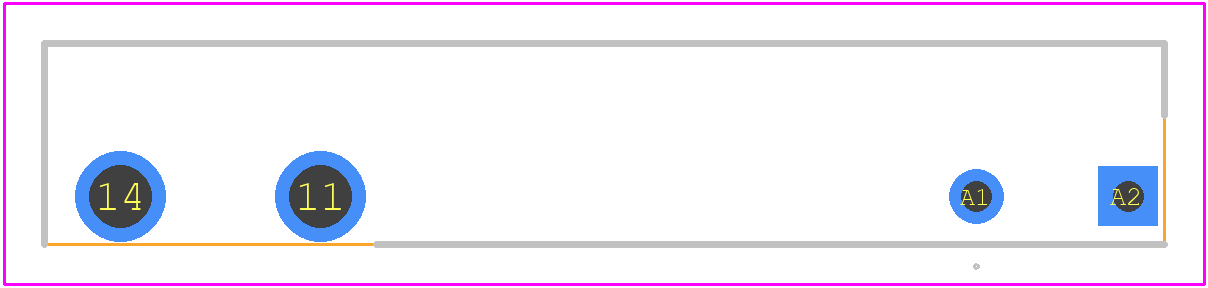

Use the download button to access the CN240A24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CN240,
or try a keyword search, such as Solid State Relays
