CONREVSMA002-L-G - TE Connectivity

Description: Body Features: Body Plating Material Gold | Body Material Finish Plated | Body Material Brass | Cable Connector Orientation Right Angle | Configuration Features: PCB Mount Orientation Right Angle | Number of Coaxial Contacts 1 | Number of Positions 1 | Contact Features: RF Connector Center Contact Material Brass | RF Connector Center Contact Plating Material Gold | Electrical Characteristics: Impedance 50 OHM | Mechanical Attachment: Detent Without | RF Contact Captivation Method Mechanical | Connector Moun

Download CONREVSMA002-L-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CONREVSMA002-L-G - TE Connectivity - PCB symbol
click to zoom

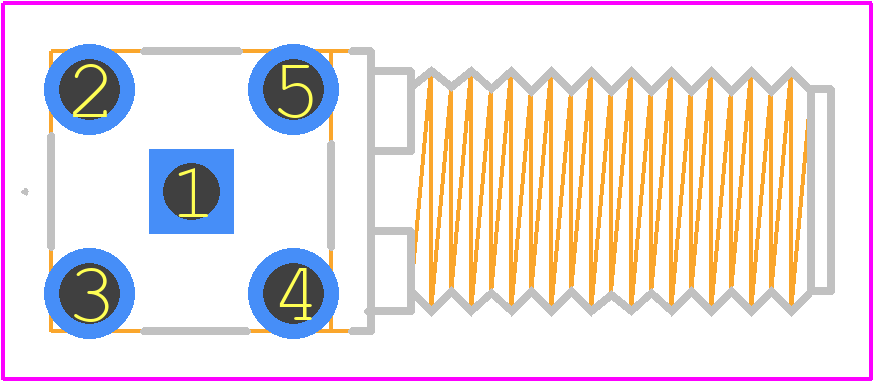

PCB Footprints
CONREVSMA002-L-G - TE Connectivity PCB footprint - Other - Other - CONREVSMA002-L-G-2-ren2
click to zoom

CONREVSMA002-L-G Details

  • Manufacturer Part Number:

    CONREVSMA002-L-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Connector Type:

    RF SMA CONNECTOR

CONREVSMA002-L-G Frequently Asked Questions (FAQs)

  • The recommended torque for the CONREVSMA002-L-G connector is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw lock and 0.2-0.4 Nm (1.8-3.5 in-lbs) for the nut lock.
  • Yes, the CONREVSMA002-L-G connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial automation.
  • Yes, the CONREVSMA002-L-G connector is designed to operate in harsh environments, including extreme temperatures (-65°C to 200°C), high humidity, and exposure to chemicals and fuels.
  • The CONREVSMA002-L-G connector has a mating cycle life of 500 cycles minimum, making it suitable for applications that require frequent mating and unmating.
  • Yes, the CONREVSMA002-L-G connector is designed to be compatible with other TE Connectivity products, including cables, contacts, and backshells, allowing for easy integration into existing systems.
