CONSWD001-SMD - TE Connectivity

Description: RF Switch RF Interface, Jack, 50 Ω, Snap-On, 6 GHz Operating Frequency, Cable-to-Board, 1 Position, Printed Circuit Board, Board Mount, Copper Alloy

Download CONSWD001-SMD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

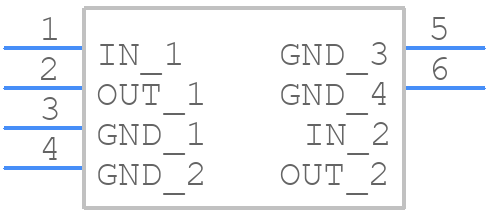

CONSWD001-SMD - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
CONSWD001-SMD - TE Connectivity PCB footprint - Other - Other - CONSWD001-SMD
click to zoom
3D Models
CONSWD001-SMD - TE Connectivity - 3D model - Other - CONSWD001-SMD
click to zoom

CONSWD001-SMD Details

  • Manufacturer Part Number:

    CONSWD001-SMD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Factory Lead Time:

    7 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • Connector Type:

    RF CONNECTOR

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CONSWD001-SMD Overview

Use the download button to access the CONSWD001-SMD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CONSW, or try a keyword search, such as Other RF Connectors
