CP-N0530-1002SZ - COILCRAFT

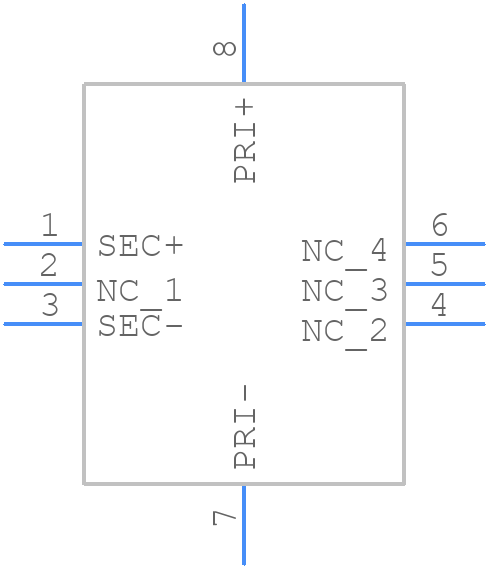

CP-N0530-1002SZ Details

• Manufacturer Part Number:

  CP-N0530-1002SZ

• Part Life Cycle Code:

  Active

• Package Description:

  CHIP

• ECCN Code:

  EAR99

• Manufacturer:

  Coilcraft Inc

• YTEOL:

  8

• Additional Feature:

  HEIGHT DIM INCLUDES TERMINAL ALSO

• ET Product-Min:

  54 V-us

• Height:

  5.3 mm

• JESD-609 Code:

  e0

• Length:

  6.22 mm

• Load Resistance:

  5.5 Ω

• Mounting Feature:

  SURFACE MOUNT

• Operating Frequency-Max:

  1000 kHz

• Operating Frequency-Min:

  9 kHz

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Packing Method:

  TR, PLASTIC, 7 INCH

• Peak Primary Current:

  10 A

• Primary Type:

  WOUND PRIMARY

• Secondary Inductance:

  2000 µH

• Surface Mount:

  YES

• Terminal Finish:

  Tin/Lead (Sn63Pb37)

• Transformer Type:

  CURRENT SENSE TRANSFORMER

• Turns Ratio (Np:Ns):

  1:100

• Width:

  5.97 mm
