CP1W-12V Frequently Asked Questions (FAQs)

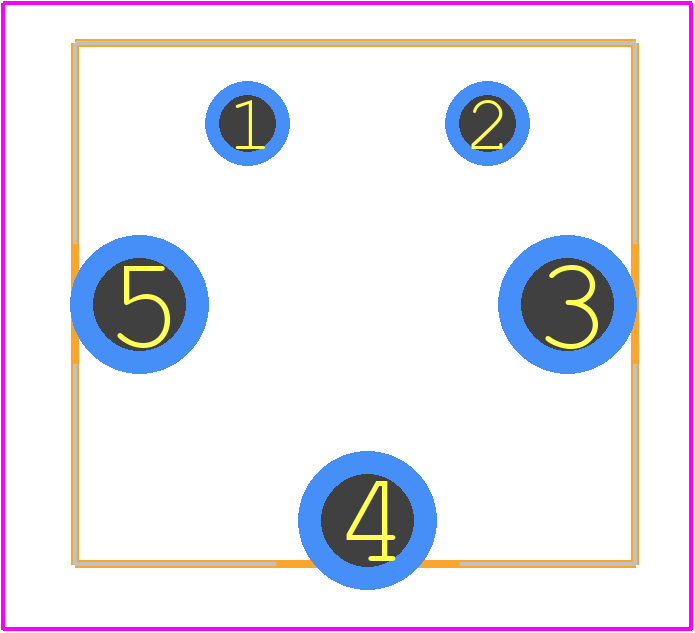

• What is the recommended PCB layout and land pattern for optimal performance?
  Panasonic recommends a PCB layout with a minimum of 1.5mm clearance around the component, and a land pattern with a 1.2mm diameter pad for the cathode and anode. A thermal relief pattern is also recommended to ensure reliable soldering.
• How does the CP1W-12V handle surge currents and voltage spikes?
  The CP1W-12V is designed to withstand surge currents up to 10A for 10ms, and voltage spikes up to 20V for 100ns. However, it's essential to follow proper PCB design and layout guidelines to ensure the component's reliability.
• What is the typical ESR (Equivalent Series Resistance) of the CP1W-12V?
  The typical ESR of the CP1W-12V is around 10mΩ, which is relatively low and suitable for most power supply and filtering applications.
• Can the CP1W-12V be used in high-temperature environments?
  The CP1W-12V is rated for operation up to 105°C, but its performance and lifespan may degrade at higher temperatures. It's essential to consider derating and thermal management when using this component in high-temperature applications.
• Is the CP1W-12V compatible with lead-free soldering processes?
  Yes, the CP1W-12V is compatible with lead-free soldering processes, and Panasonic recommends using a peak reflow temperature of 260°C to ensure reliable soldering.
