CP82C54 - Renesas Electronics

Description: The Intersil 82C54 is a high performance CMOS Programmable Interval Timer manufactured using an advanced 2 micron CMOS process. The 82C54 has three independently programmable and functional 16-bit counters, each capable of handling clock input frequencies of up to 8MHz (82C54) or 10MHz (82C54-10) or 12MHz (82C54-12). The High-Speed and industry standard configuration of the 82C54 make it compatible with the Intersil 80C86, 80C88, and 80C286 CMOS microprocessors along with many other industry standard proces

Download CP82C54 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

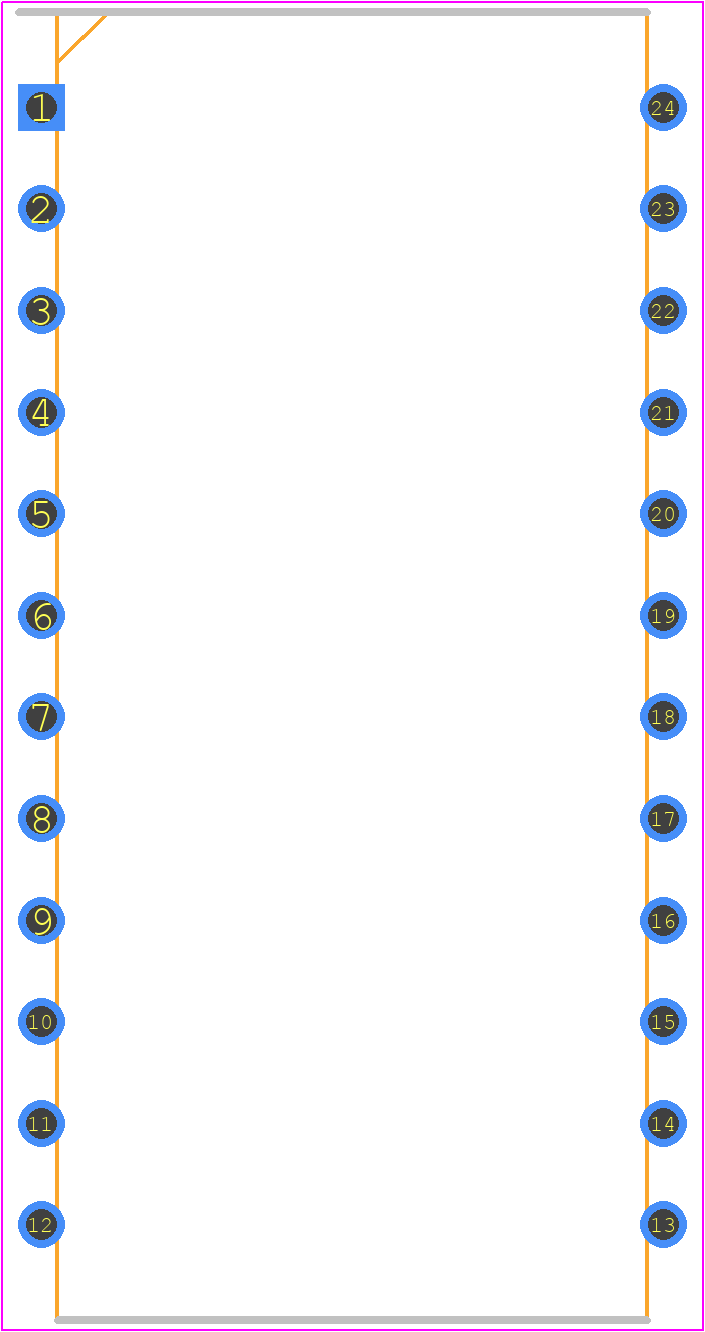

CP82C54 - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - E24.6
click to zoom
3D Models
CP82C54 - Renesas Electronics  - 3D model - Dual-In-Line Packages - E24.6
click to zoom

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CP82C54 Overview

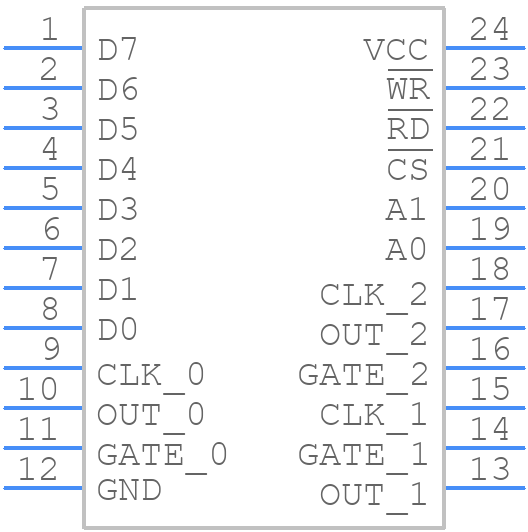

Use the download button to access the CP82C54 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CP82C, or try a keyword search, such as Timers or RTCs
