CP82C54Z - Renesas Electronics

Description: The Intersil 82C54 is a high performance CMOS Programmable Interval Timer manufactured using an advanced 2 micron CMOS process. The 82C54 has three independently programmable and functional 16-bit counters, each capable of handling clock input frequencies of up to 8MHz (82C54) or 10MHz (82C54-10) or 12MHz (82C54-12). The High-Speed and industry standard configuration of the 82C54 make it compatible with the Intersil 80C86, 80C88, and 80C286 CMOS microprocessors along with many other industry standard proces

Download CP82C54Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

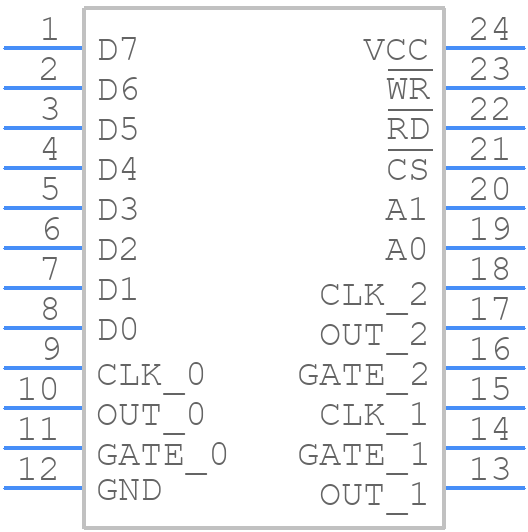

CP82C54Z - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

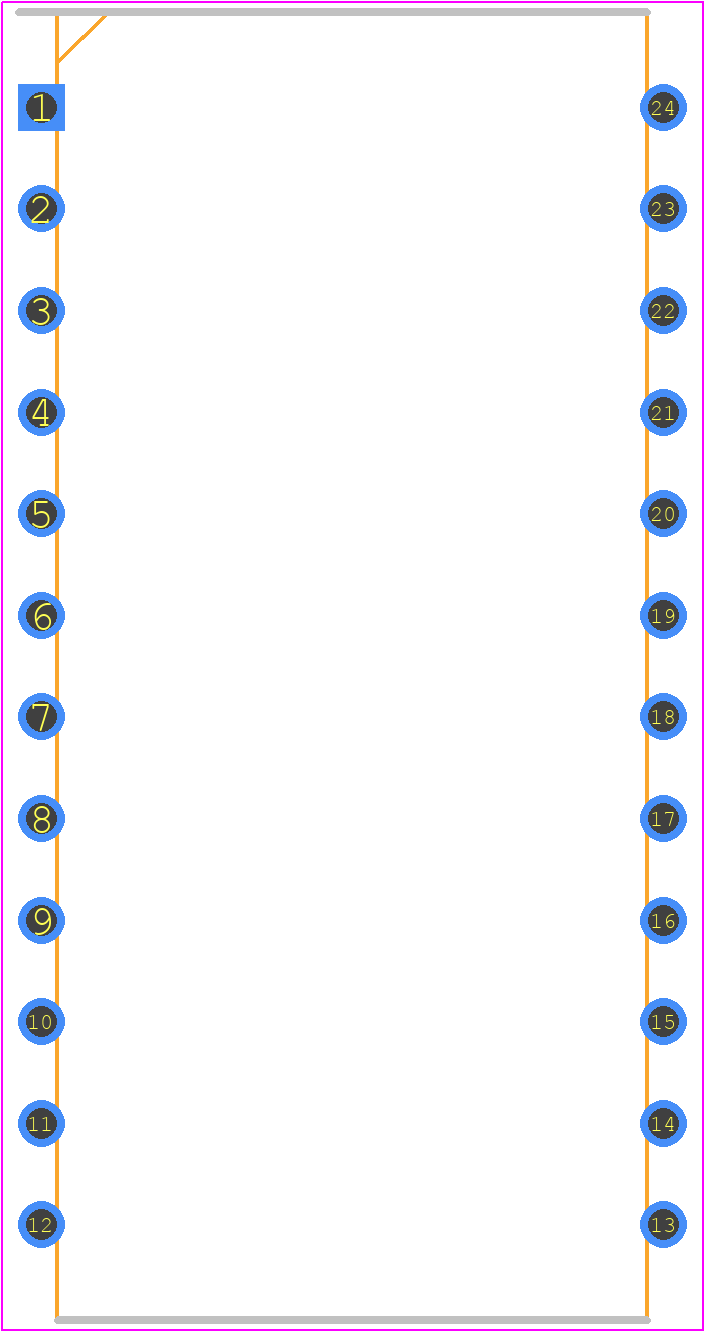

CP82C54Z - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - E24.6
click to zoom
3D Models
CP82C54Z - Renesas Electronics - 3D model - Dual-In-Line Packages - E24.6
click to zoom

CP82C54Z Details

  • Manufacturer Part Number:

    CP82C54Z

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    PDIP

  • Package Description:

    DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    E24.6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Clock Frequency-Max:

    8 MHz

  • External Data Bus Width:

    8

  • Information Access Method:

    PARALLEL, DIRECT ADDRESS

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e3

  • Length:

    31 mm

  • Number of Bits:

    16

  • Number of Terminals:

    24

  • Number of Timers:

    3

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    6.35 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    15.24 mm

  • uPs/uCs/Peripheral ICs Type:

    TIMER, PROGRAMMABLE

CP82C54Z Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the CP82C54Z is 4.5V to 5.5V.
  • The CP82C54Z has a built-in POR and BOR circuitry. The POR is triggered when the power supply voltage rises above 3.5V, and the BOR is triggered when the power supply voltage falls below 4.2V. You can use external resistors and capacitors to adjust the POR and BOR thresholds if needed.
  • The CP82C54Z can operate up to 24 MHz with an external clock source, but the maximum clock frequency may vary depending on the specific application and operating conditions.
  • The WDT in the CP82C54Z is used to detect and recover from system failures. You can enable the WDT by setting the WDTEN bit in the WDT control register. The WDT timeout period can be set to 16ms, 32ms, 64ms, or 128ms using the WDTPS bits in the WDT control register.
  • The internal oscillator in the CP82C54Z is a low-power RC oscillator that can be used as a clock source for the microcontroller. It is enabled by default and can be used in conjunction with an external clock source.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CP82C54Z Overview

Use the download button to access the CP82C54Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CP82C, or try a keyword search, such as Timers or RTCs
