CPC1560GSTR - LITTELFUSE

Description: Solid State Relay 50mA 1.5V DC-IN 0.3A 60V AC/DC-OUT 8-Pin PDIP SMD T/R

Download CPC1560GSTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

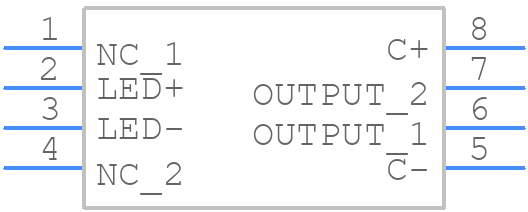

CPC1560GSTR - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints
CPC1560GSTR - LITTELFUSE PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin Surface Mount _
click to zoom
3D Models
CPC1560GSTR - LITTELFUSE - 3D model - Small Outline Packages - 8-Pin Surface Mount _
click to zoom

CPC1560GSTR Details

  • Manufacturer Part Number:

    CPC1560GSTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    6

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    250

  • Terminal Finish:

    TIN

  • Time@Peak Reflow Temperature-Max (s):

    30

CPC1560GSTR Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for CPC1560GSTR is a rectangular pad with a minimum size of 2.5mm x 1.5mm, with a 0.5mm radius corner and a 0.3mm spacing between pads.
  • To ensure reliable soldering of CPC1560GSTR, use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder paste to the pads. Avoid applying excessive heat or pressure, which can damage the component.
  • The maximum operating temperature range for CPC1560GSTR is -40°C to 125°C, with a storage temperature range of -40°C to 150°C.
  • Yes, CPC1560GSTR is suitable for high-reliability applications, such as automotive, industrial, and medical devices, due to its high surge current rating and robust construction.
  • To prevent electrostatic discharge (ESD) damage, handle CPC1560GSTR components with ESD-protective equipment, such as wrist straps and mats, and avoid touching the component pins or leads.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CPC1560GSTR Overview

Use the download button to access the CPC1560GSTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CPC15, or try a keyword search, such as Solid State Relays
