The recommended PCB layout for CPC1593GSTR involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the power source to minimize inductance. Additionally, it's recommended to use a 10nF to 100nF decoupling capacitor between the VIN and GND pins.
To ensure proper thermal management, it's recommended to provide a thermal pad on the PCB under the device, and to use a heat sink or thermal interface material (TIM) if the device is expected to operate at high temperatures or high currents. The thermal pad should be connected to a solid ground plane to help dissipate heat.
The CPC1593GSTR can handle surge currents up to 100A for 10ms, but this may vary depending on the specific application and operating conditions. It's recommended to consult with Littelfuse Inc or a qualified engineer to determine the maximum surge current for a specific use case.
Yes, the CPC1593GSTR is qualified to AEC-Q101 standards, making it suitable for use in high-reliability and automotive applications. However, it's recommended to consult with Littelfuse Inc or a qualified engineer to ensure the device meets the specific requirements of the application.
To troubleshoot issues with CPC1593GSTR, start by checking the PCB layout and thermal management to ensure they meet the recommended guidelines. Next, verify that the input voltage and current are within the specified operating range. If the issue persists, consult the datasheet and application notes, or contact Littelfuse Inc or a qualified engineer for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CPC1593GSTR Overview

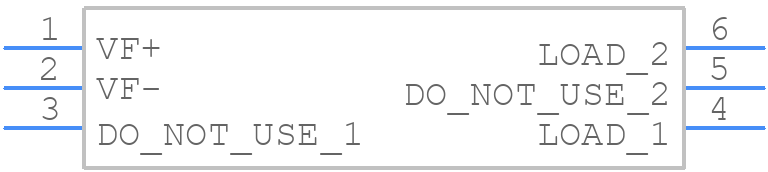

Use the download button to access the CPC1593GSTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CPC15,
or try a keyword search, such as Solid State Relays
