The recommended PCB layout for CPC1966B involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the traces to reduce electromagnetic interference (EMI) and radio-frequency interference (RFI).
To ensure the reliability of CPC1966B in high-temperature applications, it is recommended to derate the device's current rating according to the temperature derating curve provided in the datasheet, and to ensure good thermal management through proper heat sinking and airflow.
Yes, CPC1966B can be used in parallel to increase the current rating, but it is essential to ensure that the devices are properly matched and that the current sharing is balanced to avoid overheating and reduce the overall reliability.
The recommended fuse type and rating for CPC1966B depends on the specific application and the maximum fault current expected. As a general guideline, a fast-acting fuse with a rating of 1-2 times the maximum expected current is recommended.
To troubleshoot CPC1966B if it fails to turn on or off, check the input voltage, the gate drive circuitry, and the load circuitry for any faults or malfunctions. Also, verify that the device is properly soldered and that there are no signs of physical damage or overheating.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CPC1966B Overview

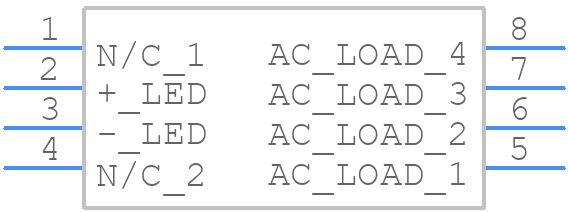

Use the download button to access the CPC1966B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CPC19,
or try a keyword search, such as Solid State Relays
