CPC5903GS - LITTELFUSE

Description: Logic Output Optocouplers Dual Opto Isolated I2C Bus Repeater

Download CPC5903GS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

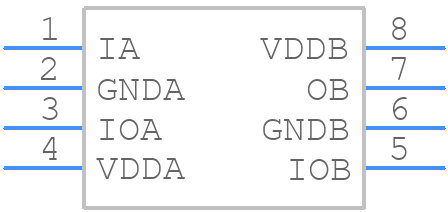

CPC5903GS - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints
CPC5903GS - LITTELFUSE PCB footprint - Small Outline Packages - Small Outline Packages - CPC5903GS
click to zoom
3D Models
CPC5903GS - LITTELFUSE - 3D model - Small Outline Packages - CPC5903GS
click to zoom

CPC5903GS Details

  • Manufacturer Part Number:

    CPC5903GS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    0

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    9.652 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.37,100

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    250

  • Seated Height-Max:

    4.572 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.35 mm
